Haibike XDURO NDURO 10.0 FLYON

£8,099.00
check size for availability
Check availability
  • Contact Us


THE HAIBIKE DISPLAY

The colour display centrally positioned above the stem is easy to read in every situation due to the transflective design. Current riding data and system information are displayed on four changeable screens. It is also possible to display and analyse training-relevant data such as pulse measurement, cadence or calorie consumption.


THE HAIBIKE REMOTE

For the central interface between rider and system we developed a remote that can be operated intuitively, which follows the compact FYLON design language and provides perfect ergonomics: The mode switch is assembled below the handlebar and can be reached via thumb even during the ride. Not only the mode display serves as feedback, but also a clearly visible LED strap on the remote which changes the colour depending on the level of assistance.


THE HAIBIKE SKYBEAMER

Why only master difficult trails and demanding routes by day? The skybeamer is available in three versions with 150, 300 or bright 5,000 lumen meaning you can now safely stay stay out riding after dark! Parking your bike for the short and dark days during the winter months will now be a thing of the past thanks to the powerful headlight. With the skybeamer 5,000 we developed an independent system with daytime running light, which provides classic low beam as well as a high beam light with over 5,000 lumen. It can be operated by remote or fully-automated by a brightness sensor integrated into the display.

THE HAIBIKE FLIP-CHIP

All full-suspended FLYON models have a so-called flip-chip, an aluminium part which enables relocating the mounting position of the damper by 9mm and thus changing the characteristics of the bike. By adjusting the steering angle by 1° and changing the bottom bracket height by 10mm, you get a bike aimed to Downhill or All-round.

THE HAIBIKE SPEED SENSOR DISC

A newly developed speed sensor disc sends 18 signals per rotation of the wheel to the system and measures the speed 18 times more accurately than any other system available on the market. In this way, the system is able to react significantly faster and more dynamically to changing requirements and recognises acceleration even at slow speeds, e. g. hill starts. The sensor itself is safely positioned out of the way of harm and integrated in the left frame dropout.

THE HAIBIKE BATTERY

Together with our technology partner BMZ we developed an 48 Volt energy storage system with an extremely high energy density and 630 Wh capacity. On the inside the battery connects via magnet and can be secured against theft by a lock developed in collaboration with ABUS. The battery level can be checked via touch sensor. The waterproof battery can be charged via a 4 amp charger either directly through the bike, or separately when removed.


THE HAIBIKE CHAIN WHEEL

A specially constructed and designed Direct Mount chain ring is available with 38 or 42 teeth to give you an optimum cadence and transmit power to the drivetrain. The alternatting narrow wide tooth design helps to lock the chain to the chainring and stops your chain falling off over rough terrain.



THE HAIBIKE MOTOR

Conquer steep ascents, “fly” overtrails, explore new frontiers andextend them: An extra strong power package — made in Germany — ensures the necessary power when you need it, with perfect modulation possible through the five custom assist modes. Together with the technology supplier TQ we developed a dynamic motor that is the most powerful mid motor on the market at the moment providing up to 120 Nm torque. Thanks to it’s patented transmission the motor offers extreme power and efficiency in a compact package.

THE HAIBIKE SKIDPLATE

The Haibike skidplate is a motor cover made of fibre-reinforced plastic and protects the motor effectively from direct impacts when you ride over obstacles as well as from dirt and impacts from stones and other trail debris.

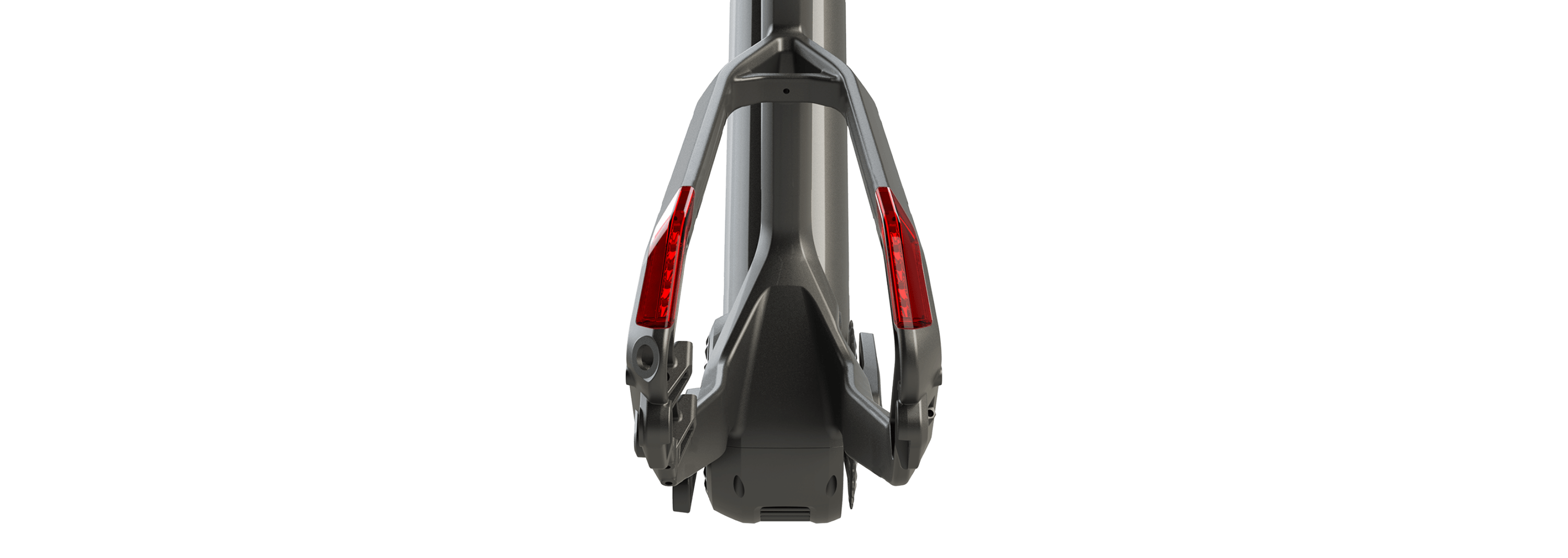

THE HAIBIKE TWIN TAIL LIGHTS

With the Haibike Twin Tail Lights you can keep on riding even after the sun sets! Eight highly-efficient LEDs make the eBike easily visible also from the side.



THE MODULAR RAIL SYSTEM (MRS)

Our patent MRS allows the quick and simple mounting of different equipment on the bike.


SPECIFICATIONS

  • FRAME

    Carbon/Aluminium, Tapered head tube, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 180mm

  • DRIVE UNIT

    Flyon HPR120S, 25km/h

  • DISPLAY

    Flyon The Display

  • BATTERY

    Flyon The Battery, 630 Wh

  • CHARGER

    Haibike The Battery Charger 4A

  • FORK

    FOX 36 Float Factory, air, Travel: 180mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, thru-axle

  • DAMPER

    FOX Float X2 Factory, air

  • SHIFTING SYSTEM

    Sram EX1, 8 speed

  • GEAR LEVER

    Sram EX1, trigger switch

  • REAR SPROCKET

    Sram XG899, 11-48 teeth

  • CHAIN

    Sram EX1

  • CHAIN RING

    Haibike Components The Chainring, 38, aluminium

  • BRAKE LEVER

    Magura MT7 HC-lever, aluminium

  • FRONT BRAKE

    Magura MT7, 203mm, 4-piston disc brake

  • REAR BRAKE

    Magura MT7, 203mm, 4-piston disc brake

  • TYRES

    Schwalbe Magic Mary, 65-584, 27.5" x 2.6", foldable

  • WHEEL SET

    DT Swiss FR1950

  • HANDLEBAR

    Haibike Components The Bar +++ DI2 Holes 780mm

  • GRIPS

    Haibike MTB grips

  • STEM

    Haibike Components TheStem 2, A-head, Bar bore: 31.8mm

  • HEAD SET

    A-Head Tapered, Cartridge, aluminium

  • SADDLE

    Prologo PROXIM TiroX

  • SEAT POST

    Kind Shock LEV-Integra, telescope, 34.9mm, aluminium

  • PEDALS

    Haibike Freeride pedal, aluminium

  • HEAD LIGHT

    Haibike Skybeamer 5000 daytime running light, high beam, 150 lux

  • TAILLIGHT

    Haibike Twin TailLights

  • TOTAL PERM. WEIGHT

    120kg

  • RRP

    8.999 €

  • WHEEL SIZE

    27.5"

GEOMETRY

Intube frame geometry
Frame size
S M L XL
A
FRAME HEIGHT
42 cm 44 cm 46 cm 48 cm
B
SEAT TUBE ANGLE
74 ° 74 ° 74 ° 74 °
C
SEAT TUBE OFFSET
12 mm 12 mm 12 mm 12 mm
D
SEAT ANGLE
75.12 ° 75.12 ° 75.09 ° 75.09 °
E
HEAD TUBE LENGTH
110 mm 110 mm 130 mm 130 mm
F
HEAD TUBE ANGLE
64 ° 64 ° 64 ° 64 °
G
TOP TUBE LENGHT (HORIZONTAL)
570 mm 600 mm 630 mm 660 mm
H
CHAINSTAY LENGTH
470 mm 470 mm 470 mm 470 mm
I
BOTTOM BRACKET DROP
-5 mm -5 mm -5 mm -5 mm
J
WHEEL BASE
1226 mm 1256 mm 1290 mm 1320 mm
K
STACK
594 mm 594 mm 612 mm 612 mm
L
REACH
412 mm 442 mm 467 mm 497 mm
M
STAND-OVER HEIGHT
