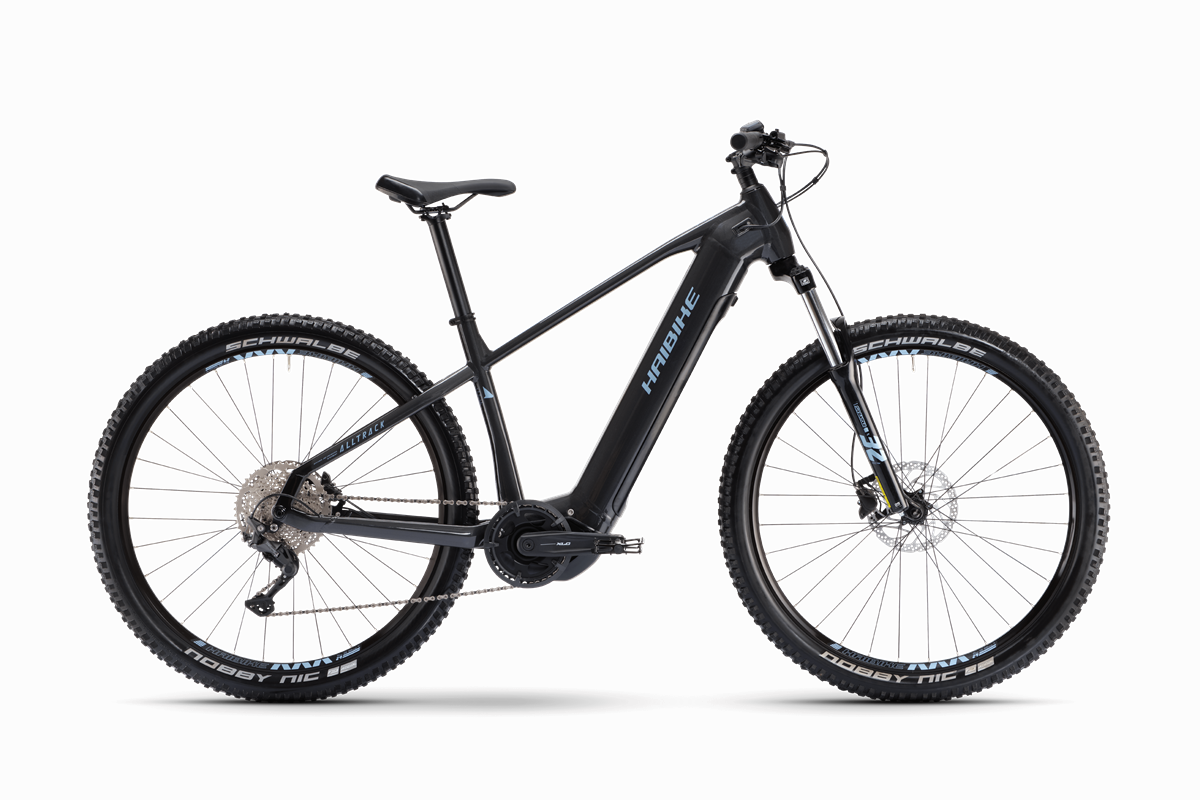

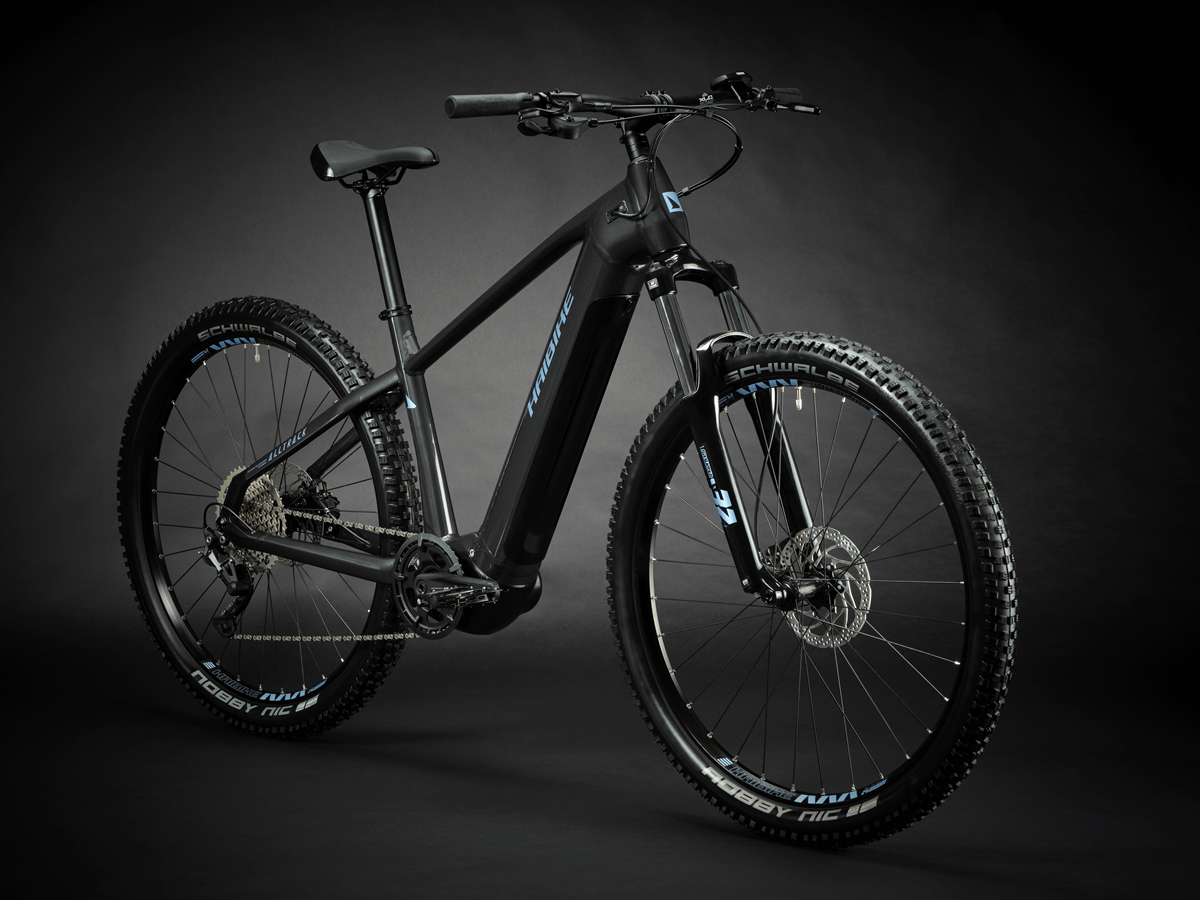

Haibike AllTrack 5 27.5
ABOUT THE BIKE
Asphalt or off-road? With the Haibike ALLTRACK 5 you don't have to choose! This hardtail eMTB is your ideal companion for on, and off-road, adventures. The SR Suntour suspension fork with 120 mm travel and the hydraulic disc brakes from Shimano ensure safety and comfort even on rough terrain. The new Yamaha PW-S2 motor with 75 Nm of torque and 720 Wh battery supports you on steep climbs and the reliable Shimano Deore 10-speed rear derailleur ensures smooth riding fun. The ALLTRACK 5 is available in frame sizes S and M with 27.5" wheels and sizes M to XL with 29" wheels.
KEY FEATURES
FORK
SR Suntour XCM32 Boost DS, Travel: 120mm
BATTERY
InTube 720 Wh
FRAME MATERIAL
Aluminium
DRIVE UNIT
Yamaha PW-S2 System, 75Nm, 25km/h
SPECIFICATIONS
- ENGINEYamaha, PW-S2, 250W, 75 Nm

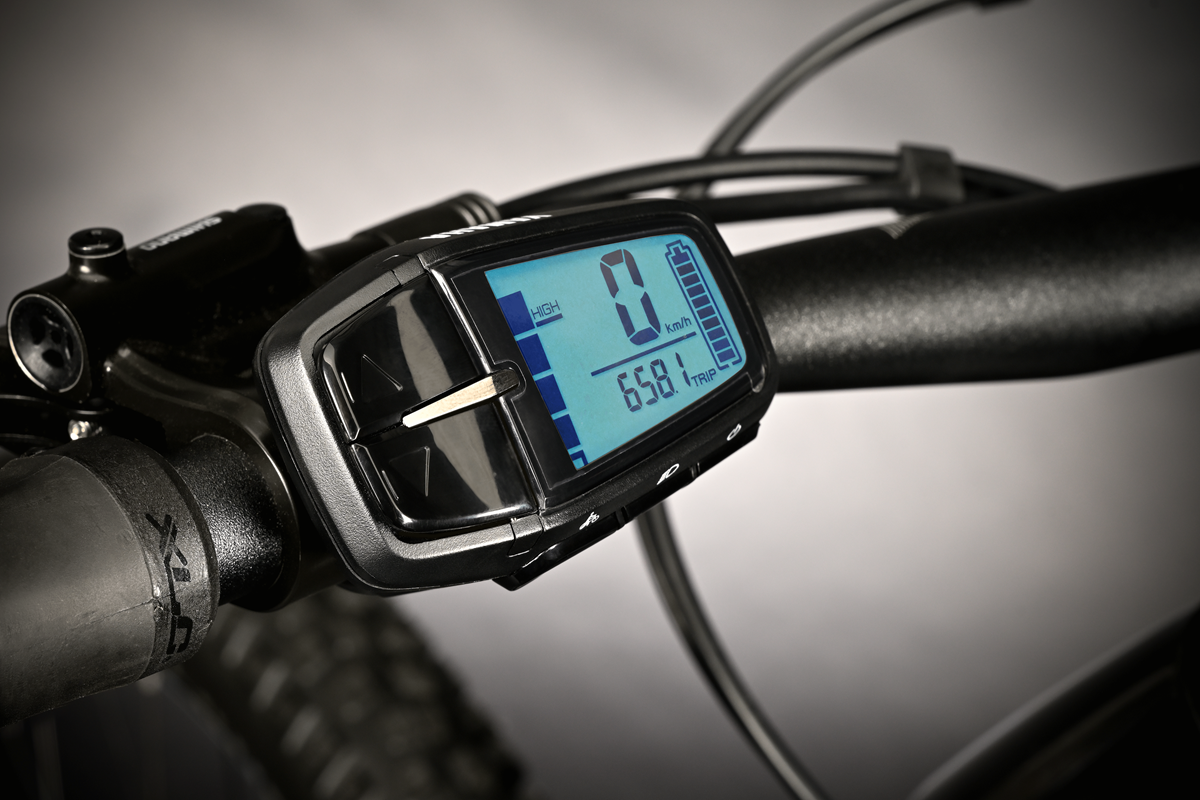

- DISPLAYYamaha, Side Switch, 1.7" LCD, 7 functions
- BATTERYInTube, 720 Wh
- FORKSR Suntour, XCM32 Boost DS, Steel spring/oil, 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
- CRANK ARMMiranda, Kies

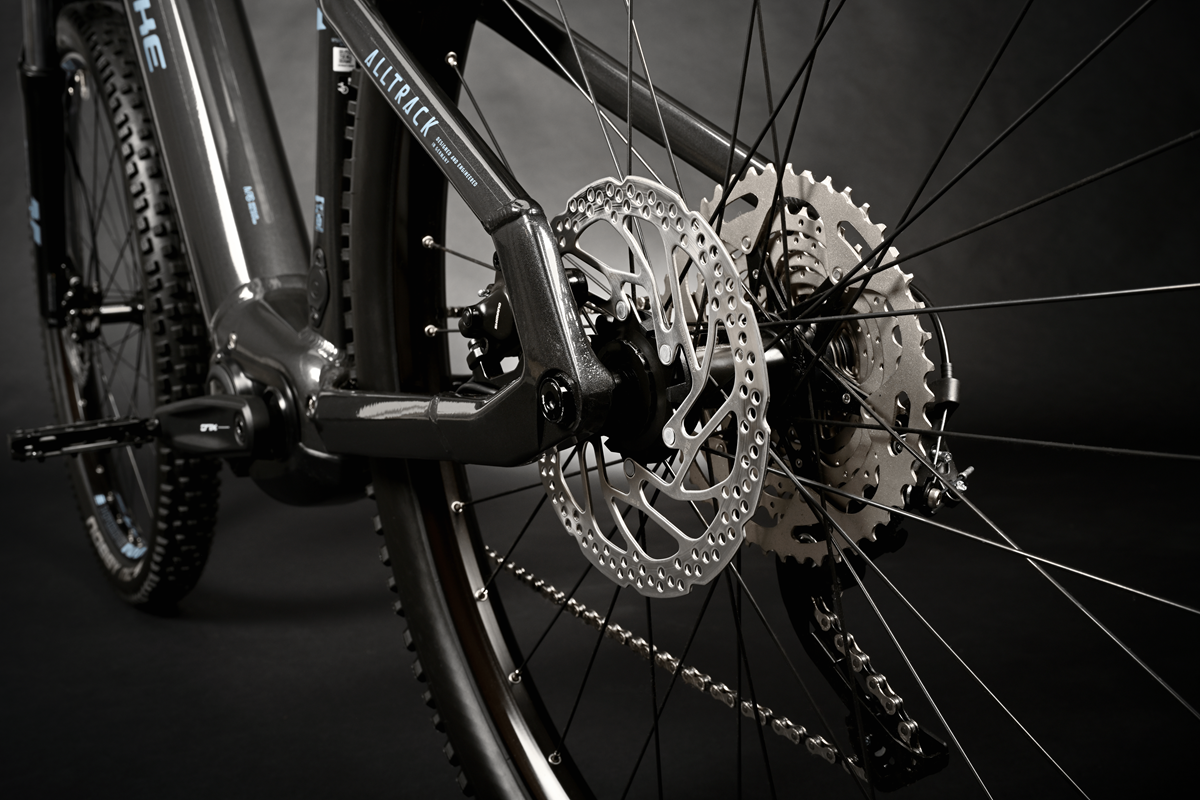

- BRAKE (FRONT)Shimano, MT200, 2-piston disc brake
- BRAKE (REAR)Shimano, MT200, 2-piston disc brake
- TUBEPresta valve
- RIMRodi, Tryp 30, with eyelets, hollow rim, Aluminium
- CLAMPING RINGInternal hexagon, 38 mm

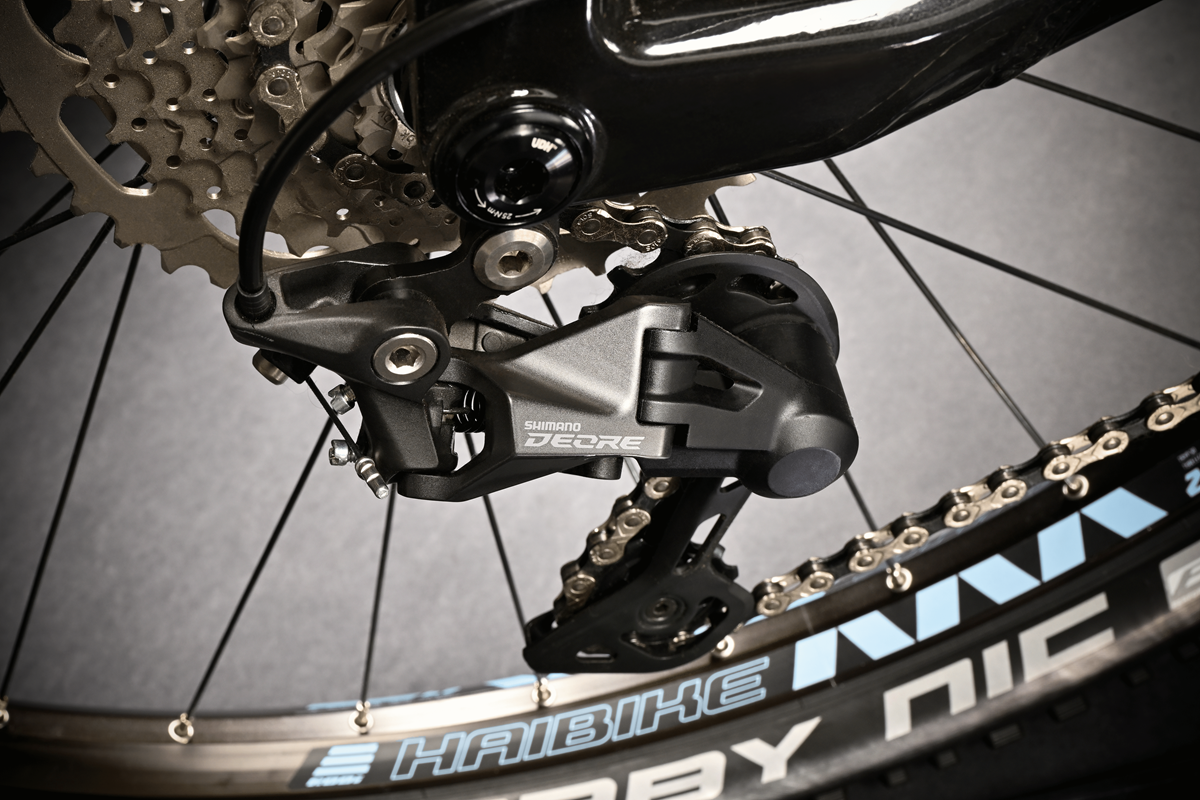

- REAR DERAILLEURShimano, Microshift Advent X RD-M6250M
- SHIFT LEVERShimano, Microshift Advent X SLM9505
- BOTTOM BRACKETintegrated in the motor
- SPROCKETShimano, Microshift Advent X HG104
- CHAINKMC, e10S
- CHAINRINGSteel, 38 teeth
- CHAIN GUIDENylon directmount
- BRAKE LEVERShimano, MT201, Aluminium,
- BRAKE DISC (FRONT)Shimano, RT30-M, 180 mm
- BRAKE DISC (REAR)Shimano, RT30-M, 180 mm
- TYRESchwalbe, Nobby Nic Performance, 65-584, 27.5" x 2.6"
- FRONT WHEEL HUBShimano, MT400-B, Centerlock
- REAR WHEEL HUBAlu hub, Centerlock
- SPOKESSapim, Leader, Black
- HANDLEBARXLC, 720 mm
- STEMXLC, A-Head, A-head, 31.8 mm

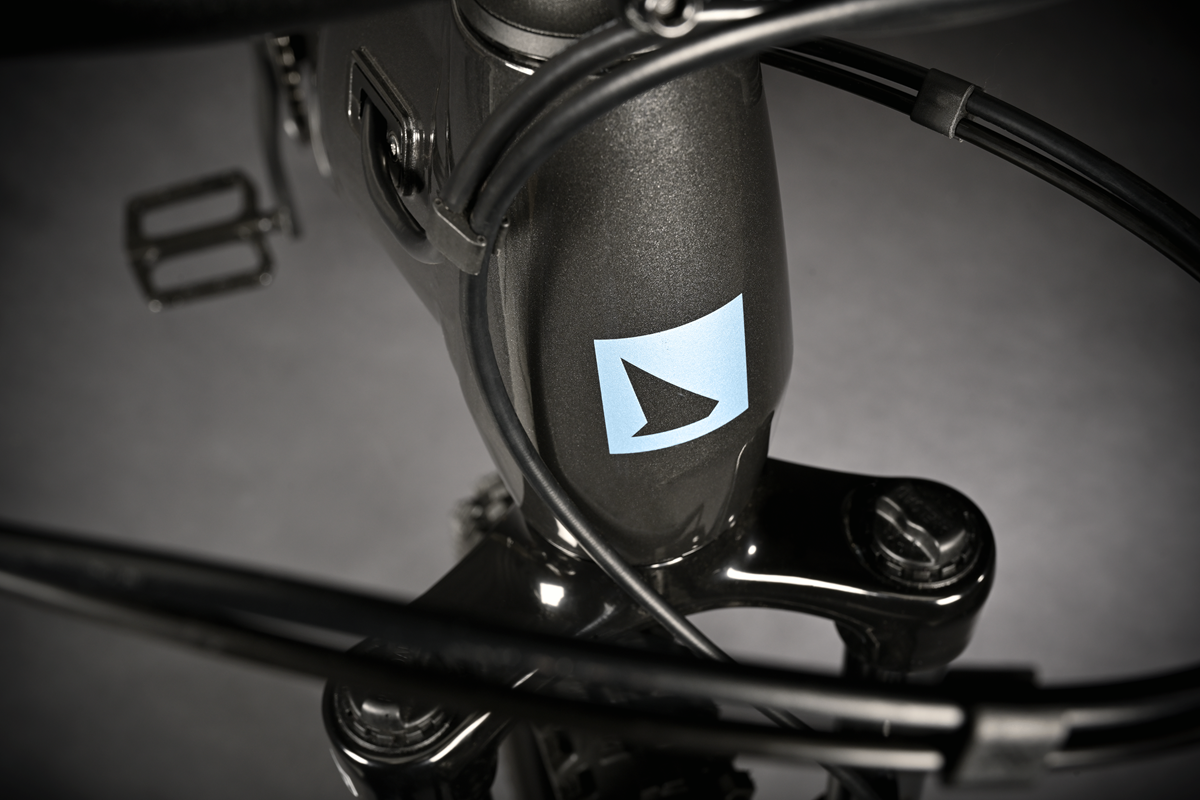

- HEADSETFeimin, A-Head Tapered, Aluminium, Cartridge
- SADDLEXLC, MTB
- SEAT POSTAluminium, Patent, 34.9 mm
- PEDALSFreeridepedal, Aluminium, with Reflector
- PERMITTED TOTAL WEIGHT120.0 kg
- GEAR SHIFTShimano, Nexus
GEOMETRY
| FRAME SIZE (I.E. S, M, ...) | S | M |
|---|---|---|
| A | ||
| B | ||
| D | ||
| E | ||
| F | ||
| G | ||
| H | ||
| I | ||
| J | ||
| K | ||
| L |
