Haibike HardSeven 4

Cross-Bar
List price: £2,249.00
£1,679.00
You save: £570.00 (25%)
check size for availability
Check availability
  • Contact Us

ABOUT THE BIKE

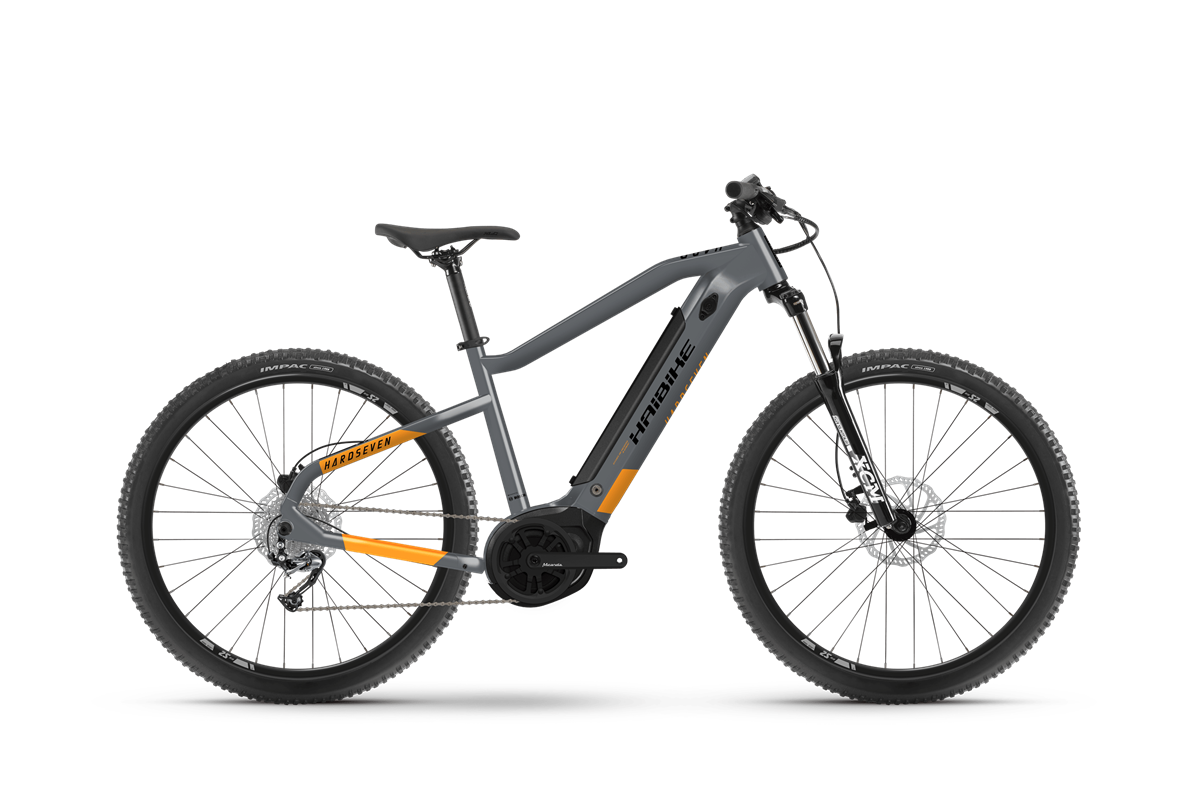

So you're looking for an agile hardtail eMTB with a powerful drive unit? The HardSeven 4 is equipped with a powerful Bosch Performance Line motor and always offers the right support level you need to suit the terrain. This eBike, equipped with 27.5" wheels, comes with a sophisticated selection of components and will always get you to your destination even after countless miles on the trail.

KEY FEATURES

  • Frame material

    FRAME MATERIAL

    Aluminium
  • Drive unit

    DRIVE UNIT

    Bosch Performance Line, 65Nm, 25km/h
  • Battery

    BATTERY

    Bosch PowerTube 400Wh
  • Fork

    FORK

    SR Suntour XCM32 Boost DS, Travel: 120mm

SPECIFICATIONS

    • ENGINE
      Bosch, Performance Line , 250W, 65 Nm, 25 km/h
    • DISPLAY
      Bosch, Purion
    • BATTERY
      Bosch, PowerTube, 400 Wh
    • FRAME FAMILY
      Haibike, HardSeven Gen3 Intube, Aluminium 6061
    • FORK
      SR Suntour, XCM32 Boost DS, Steel spring/oil, Travel= 120 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
    • CRANK ARM
      Haibike, forged, Aluminium
    • BRAKE (FRONT)
      Tektro, M275, 180 mm, 2-piston disc brake
    • BRAKE (REAR)
      Tektro, M275, 180 mm, 2-piston disc brake
    • TUBE
      Presta valve
    • RIM
      Schürmann, Yak25, with eyelets, hollow rim, Aluminium
    • CLAMPING RING
      Quick release, 34.9 mm
    • REAR DERAILLEUR
      Shimano, Alivio M3100
    • SHIFT LEVER
      Shimano, Alivio M3100, Trigger switch, 9 Speed
    • BOTTOM BRACKET
      Integrated in the motor
    • SPROCKET
      SunRace, CSM90, 11 - 36 teeth
    • CHAIN
      KMC, e9S
    • CHAINRING
      Steel, 38 teeth
    • BRAKE LEVER
      Tektro, M275, Aluminium
    • BRAKE DISC (FRONT)
      Tektro, TR180
    • BRAKE DISC (REAR)
      Tektro, TR180
    • TYRE
      Impac, Smart Pac, 57-584, 27,5" x 2.25"
    • FRONT WHEEL HUB
      Haibike, Alu Nabe, 6-bolt standard
    • REAR WHEEL HUB
      Haibike, Alu Nabe, 6-bolt standard
    • SPOKES
      Sapim, Leader, Black
    • HANDLEBAR
      XLC, Topflat, 720 mm
    • GRIPS
      Haibike, MTB grips
    • STEM
      XLC, Alu, A-head
    • HEADSET
      Feimin, A-Head Tapered, Ball bearing
    • SADDLE
      XLC, MTB
    • SEAT POST
      XLC, Aluminium, Patent, 31.6 mm
    • PEDALS
      Freeridepedal , Aluminium, with Reflector,
    • PERMITTED TOTAL WEIGHT
      120.0 kg
INCLUDES eCONNECT

No

GEOMETRY

FRAME SIZE (I.E. S, M, ...)SML
AFRAME HEIGHT (CM)40.0 cm46.0 cm49.0 cm
BSEAT TUBE ANGLE74.8 degrees74.7 degrees74.7 degrees
DSEAT ANGLE75.0 degrees75.0 degrees75.0 degrees
EHEAD TUBE LENGTH125.0 mm135.0 mm170.0 mm
FHEAD TUBE ANGLE (DEGREES)65.0 degrees65.0 degrees65.0 degrees
GTOP TUBE HORIZONTAL574.0 mm610.0 mm640.0 mm
HCHAIN STAY LENGTH490.0 mm490.0 mm490.0 mm
IBOTTOM BRACKET DROP-54.0 mm-54.0 mm-49.0 mm
JWHEELBASE1217.0 mm1253.0 mm1291.0 mm
KSTACK624.0 mm633.0 mm660.0 mm
LREACH405.0 mm437.0 mm460.0 mm
