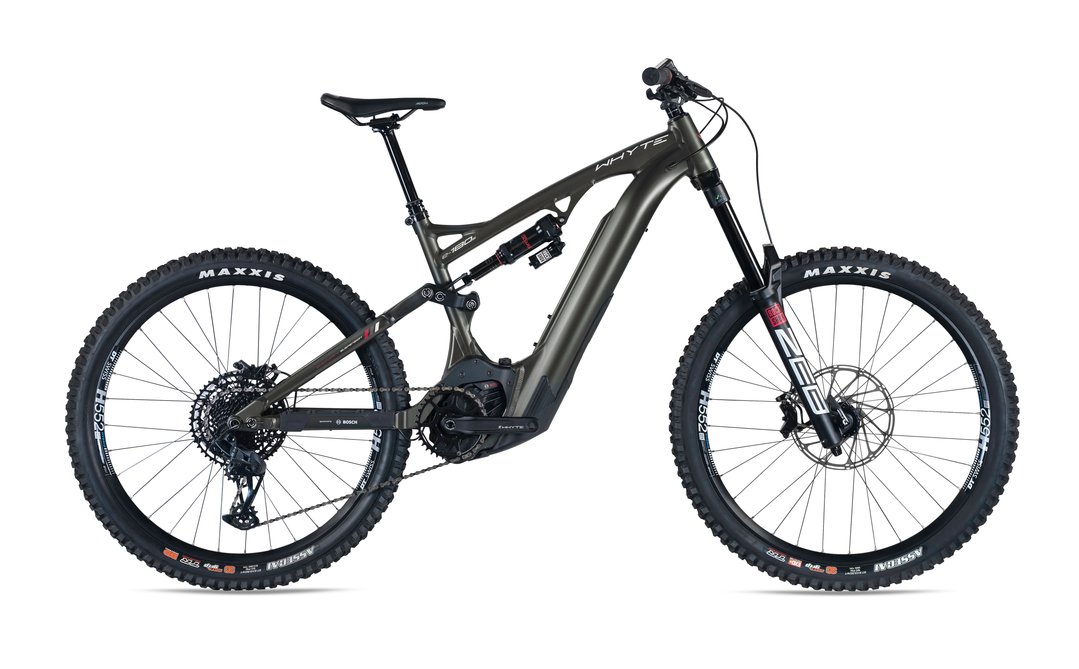

Whyte e-180 S V3

£5,999.00
check size for availability
In Stock
+
  • Contact Us

Full-gas fun, built for the toughest trails. The E-180 S combines RockShox ZEB fork with a Super Deluxe rear shock and powerful Code R brakes.


Uncompromised Whyte OTO geometry combined with an ultra-low centre of gravity means outstanding handling, balance and control. A complete eSystem from Bosch means reliability and unbeatable backup. Our “slide in” battery fitment means maximum structural integrity for minimum weight and torsional rigidity.

The high-torque 85Nm Bosch Performance Line CX motor is super-compact with exceptionally smooth power delivery which simulates normal pedalling, and range anxiety shouldn’t be an issue as we fit a powerful 625Wh battery as standard.



Whyte E-180 S V2
"Burly, Bosch-powered bike that’s ready to get rowdy"
LINK
June 2021
e-BIKE SPECIFIC SPECIFICATION
MOTORBosch Performance Line CX (Gen 4). 85 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the supportBATTERYBosch 625 Wh internal PowerTube. Reaches full charge in 5 hours with supplied 4A Compact Charger, 80% charge from 0 in 2.5 hoursDISPLAYBosch Purion
SPECIFICATION
COLOURMatt Moss with Chalk & Rose
CASSETTESRAM PG-1210 Eagle, 11-50, 12 Speed
FRAME6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
CHAINSRAM GX Eagle, 12 Speed
FORKRockShox ZEB 27.5", 180mm Travel, 44mm Offset, DebonAir, Charger R Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
CRANKSETWhyte, forged alloy, 165mm, X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black
REAR SHOCKRockShox Super Deluxe Select, DebonAir, Fast Black Coating, Adjustable Rebound
BOTTOM BRACKETN/A
HEADSETFSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
SEATPOSTWhyte drop.it II Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, MMX Paddle Remote Lever
REAR HUBAlloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 9 deg Micro Engagement 4 Pawl, 32 Hole
SADDLEFizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
FRONT HUBAlloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
HANDLEBARWhyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 800mm Wide
SPOKESDT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
STEMWhyte Enduro Stem, 35mm Bar Bore, 35mm Extension
RIMSDT Swiss Hybrid 30, Sleeved Joint, 32 Hole
GRIPSWhyte Lock-on Enduro Grip
TYREMaxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, EXO + Sidewall Protection, 3C Maxx Terra, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, Double Down Casing, 3C Maxx Terra, Dual Compound, Rear
BRAKES FRONTSRAM Code R, 4 Piston with Sintered Metal Pads, 220mm Disc
SHIFT LEVERSSRAM GX-E, Eagle, Single Click, MMX, 12 Speed
BRAKES REARSRAM Code R, 4 Piston with Sintered Metal Pads, 200mm Disc
FRONT MECHN/ABRAKE LEVERSSRAM Code R, MMX
REAR MECHSRAM GX Eagle, 12 Speed
PEDALSNone
WEIGHTTBC
Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice
SIZE GUIDE
MLXL
5’6″ – 5’10”5’10” – 6’2″6’2” – 6’6″
168 – 178 cm178 – 188 cm188 – 198 cm
GEOMETRY
SIZEMLXL
A
HEAD TUBE ANGLE (adjustable to)
64.6 (64.0)
64.6 (64.0)
64.6 (64.0)
B
SEAT TUBE ANGLE
75.575.375.1
C
TOP TUBE HORIZONTAL
605633
663
D
BB HEIGHT ABOVE GROUND
344 (336)
344 (336)
344 (336)
E
STAND OVER HEIGHT
841
841841
F
WHEEL BASE
1241.41270
1302
G
CHAIN STAY LENGTH
444
444444
H
SEAT POST DIAMETER
30.930.930.9
I
HEAD TUBE LENGTH
120130145
J
SEAT TUBE LENGTH
431.8457.2482.5
STACK626.3635.2648.7
REACH455480505
