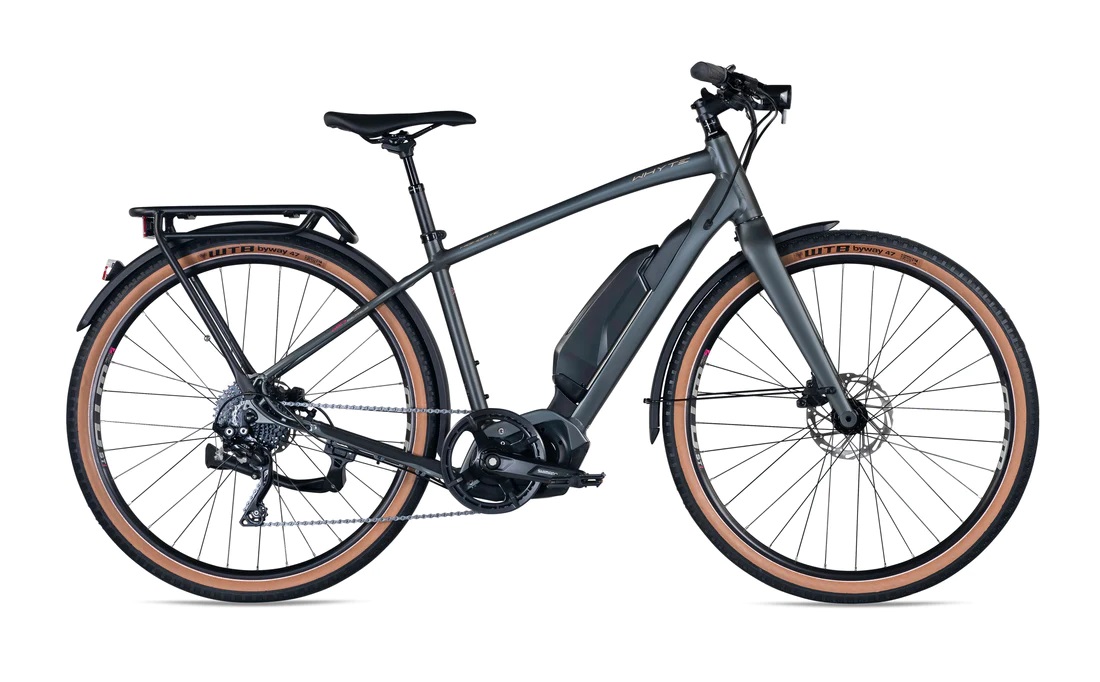

Whyte Highgate Electric Commuter

Cross-Bar

£2,899.00

Size:

check size for availability

Availability: Check availability

Description
Features
Products you might like

Small sizes, massive possibilities

Our premium compact E-commuter brings first class comfort and a limousine feel to a wider range of riders than ever before. Let the almost silent Shimano motor take the strain on hills so you arrive fresh.

Know that we’ve perfected the handling balance of the lightweight central motor frame with over twenty years of mountain bike design for effortless, easy confidence.

Powerful acceleration, flawless top spec gears and hydraulic disc brakes mean you can take control of your traffic position whatever the stop and go flow. Big WTB balloon tyres and a suspension seat post give a limousine feel however rough the road or rugged the weekend explore, and bright built-in lights and full coverage metal mudguards mean you’re good to go 24/7 whatever the weather.

Alloy rear rack lets you carry work essentials or shopping with secure safety, and you can park up anywhere with our built-in kick stand.

e-BIKE SPECIFIC SPECIFICATION
DRIVE UNIT	E6100 60Nm	DISPLAY	SC-E5000
BATTERY	418Wh	BATTERY CHARGER	2 Amp

Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and to change or update bike specifications, features, prices and colours without prior notice

Specifications

SPECIFICATION
COLOUR	Matt Granite Silver/Magenta	CASSETTE	Sunrace CSMS1, 11-36, 10 Speed
FRAME	6061 Hydro Formed T6 Aluminium, Tapered Head Tube, Hydro Formed Down Tube, Custom Drawn, Multi Butted with Custom Whyte Dropouts and Kick Stand mount	CHAIN	KMC e10T, e-bike specific chain with EPT Anti-Rust, 10 Speed
FORK	Whyte Straight Bladed 6061 Alloy, Flat Mount, Single Eyelets for Mudguards and Internal Cable RoutBicyclesing	CRANKSET	Whyte Forged 44T with Double Sided Chain Guard, 165mm, 10 Speed
REAR SHOCK	N/A	BOTTOM BRACKET	N/A
HEADSET	FSA No. 42 B CUP for 1 1/2" Lower and 1 1/8" Upper	SEATPOST	Whyte Suspension 6061 Alloy, 12mm Offset, 30.9mm, 2 Bolt Clamp
REAR HUB	Alloy, Double Sealed Cartridge Bearings, 32 Hole	SADDLE	Whyte Custom
FRONT HUB	Alloy, Double Sealed Cartridge Bearings, 32 Hole	HANDLEBAR	Whyte 6061 Alloy, 20mm Rise, 31.8mm, 620mm Wide
SPOKES	2.0mm, Black Stainless with Brass Nipples	STEM	Whyte Alloy 6061, S 60mm, M 70mm, L 80mm
RIMS	WTB STp i23 650b Rims with TCS System, Pinned Joint, Tubeless Ready, 32 Hole	GRIPS	Whyte Custom Dual Density Lock-on
TYRE	WTB Byway, Tan Wall, 650 x 47c	BRAKES FRONT	Tektro Auriga, 160mm Disc, Flat Mount, Internal Routing
SHIFT LEVERS	Shimano SL-M640, Zee, 10 Speed with STEPS SC-E5000 Display	BRAKES REAR	Tektro Auriga, 160mm Disc, Internal Routing
FRONT MECH	N/A	BRAKE LEVERS	Tektro Auriga
REAR MECH	Shimano RD-M781, Deore XT, SGS 10-Speed, Shadow	PEDALS	Fibre Reinforced Composite Platform
WEIGHT	TBC

Geometry

GEOMETRY
SIZE	S	M	L
A HEAD TUBE ANGLE	69	69.5	70
B SEAT TUBE ANGLE	74.5	74	73.5
C TOP TUBE HORIZONTAL	553	579	605
D BB HEIGHT ABOVE GROUND	265	265	265
E STAND OVER HEIGHT	720	741	774
F WHEEL BASE	1067	1078	1095
G CHAIN STAY LENGTH	450	450	450
H SEAT POST DIAMETER	27.2	27.2	27.2
I HEAD TUBE LENGTH	140	160	180
J SEAT TUBE LENGTH	393.7	431.8	469.9
