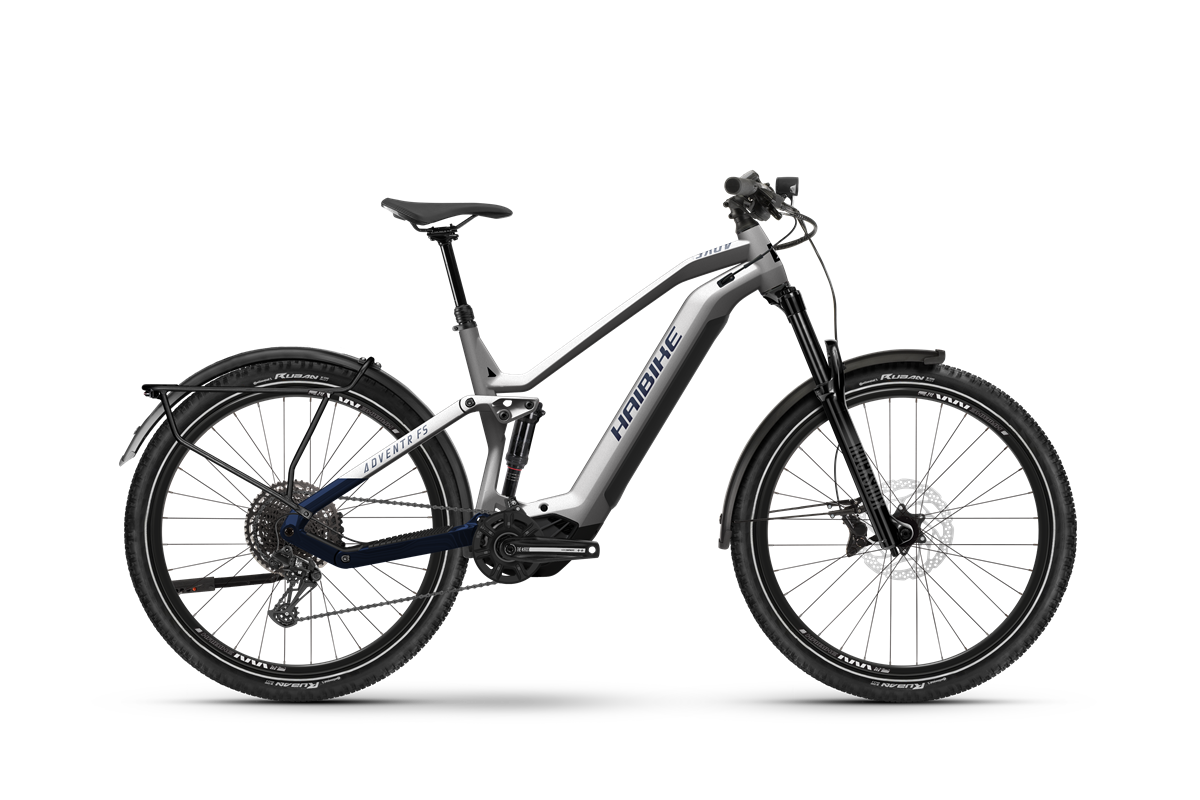

Adventr FS 9 2023
ABOUT THE BIKE

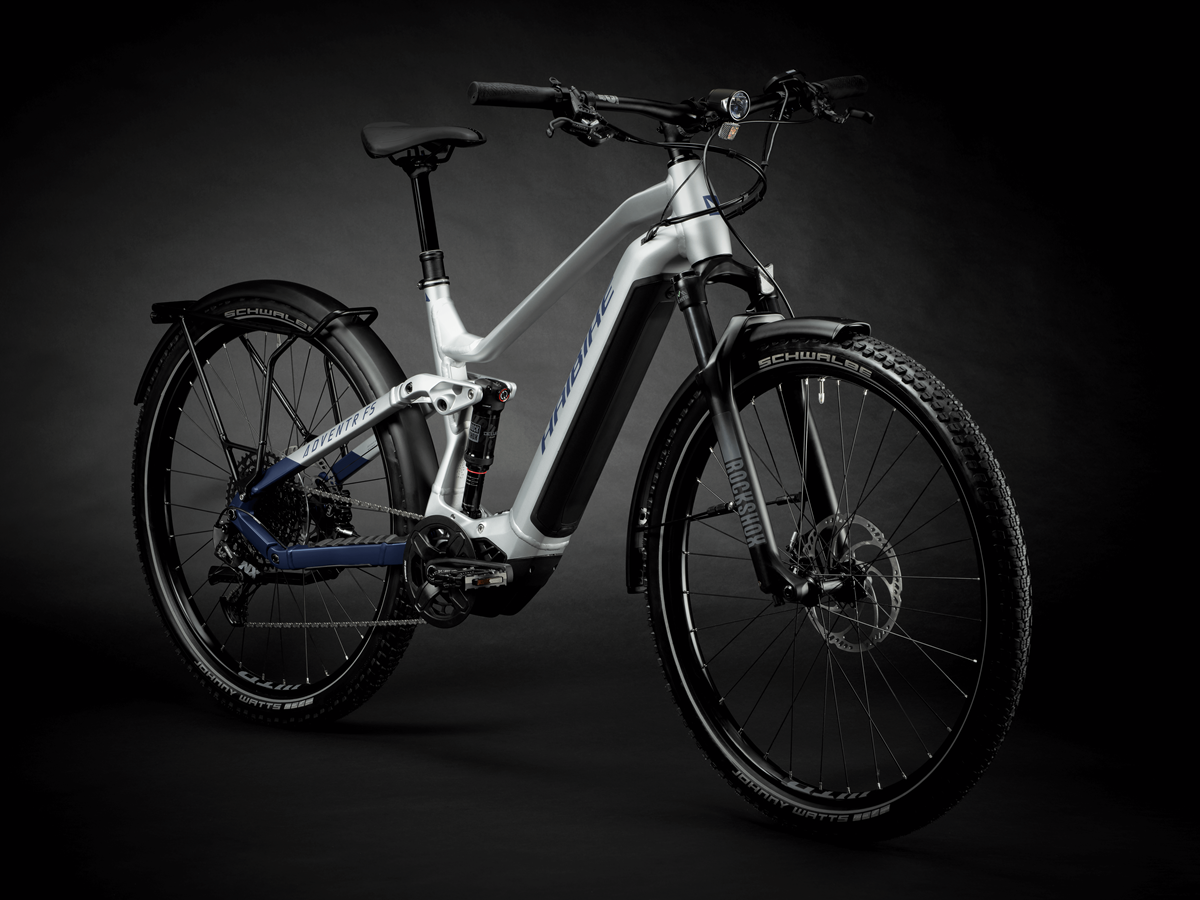

Full suspension into the next adventure: Our ADVENTR FS 9 with 27.5" wheels combines the advantages of an eFully with the comfort and features of an eTrekking bike. With the brand new Yamaha PW-S2 motor with 720 Wh battery, 140 mm front and rear suspension travel and high-quality shifting and braking components from SRAM and Shimano, you are perfectly equipped for your daily commute or multi-day tours through more challenging terrain. Thanks to the Modular Rail System, you can attach additional accessories in a few simple steps and still be StVZO-compliant* with luggage rack, mudguards and integrated lighting. *For countries outside Germany, please check your local road traffic regulations for compliance.
KEY FEATURES
FRAME MATERIAL
Aluminium
DRIVE UNIT
Yamaha PW-S2 System, 75Nm, 25km/h
FORK

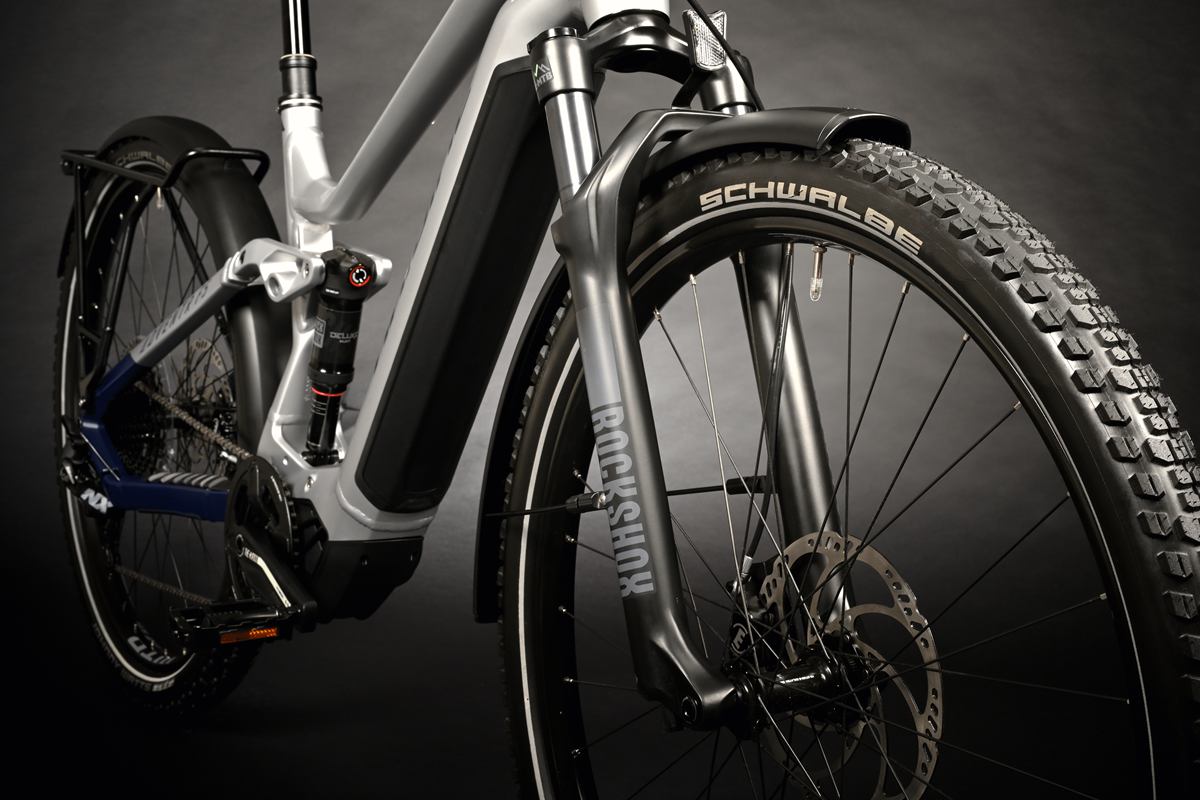

RockShox 35 Gold RL, Travel: 140mm
BATTERY
In Tube 720Wh
SPECIFICATIONS
- ENGINEYamaha, PW-S2, 250W, 75 Nm
- DISPLAYYamaha, Side Switch, 1.7" LCD, 7 functions
- BATTERYInTube, 720 Wh
- FORKRockShox, 35 Gold RL, Air, travel= 140 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
- DAMPERRockShox, Deluxe select, Air, Trunnion Mount
- CRANK ARMHaibike Components, The Crank +++, Aluminium
- BRAKE (FRONT)Shimano, MT420, 4-piston disc brake
- BRAKE (REAR)Shimano, MT420, 4-piston disc brake
- TUBEPresta valve
- RIMWTB, ST i30 TCS, Double Wall
- CLAMPING RINGInternal hexagon, 38.1 mm
- REAR DERAILLEURSram, NX Eagle
- SHIFT LEVERSram, SX Eagle, Trigger switch
- BOTTOM BRACKETintegrated in the motor
- SPROCKETSram, Eagle PG1210, 11 - 50 teeth
- CHAINSram, SX Eagle
- CHAINRINGSram, 38 teeth
- CHAIN GUIDENylon directmount
- BRAKE LEVERShimano, MT401, Aluminium,
- BRAKE DISC (FRONT)Shimano, RT EM300L, 203 mm
- BRAKE DISC (REAR)Shimano, RT30-L, 203 mm
- TYREContinental, Ruban Reflex, 29" x 2.3"
- FRONT WHEEL HUBShimano, MT400-B, Centerlock
- REAR WHEEL HUBShimano, MT400-B, Centerlock
- SPOKESSapim, Race, Black
- HANDLEBARHaibike Components, TheBar ++, 780 mm
- STEMAlu, A-head, 31.8 mm

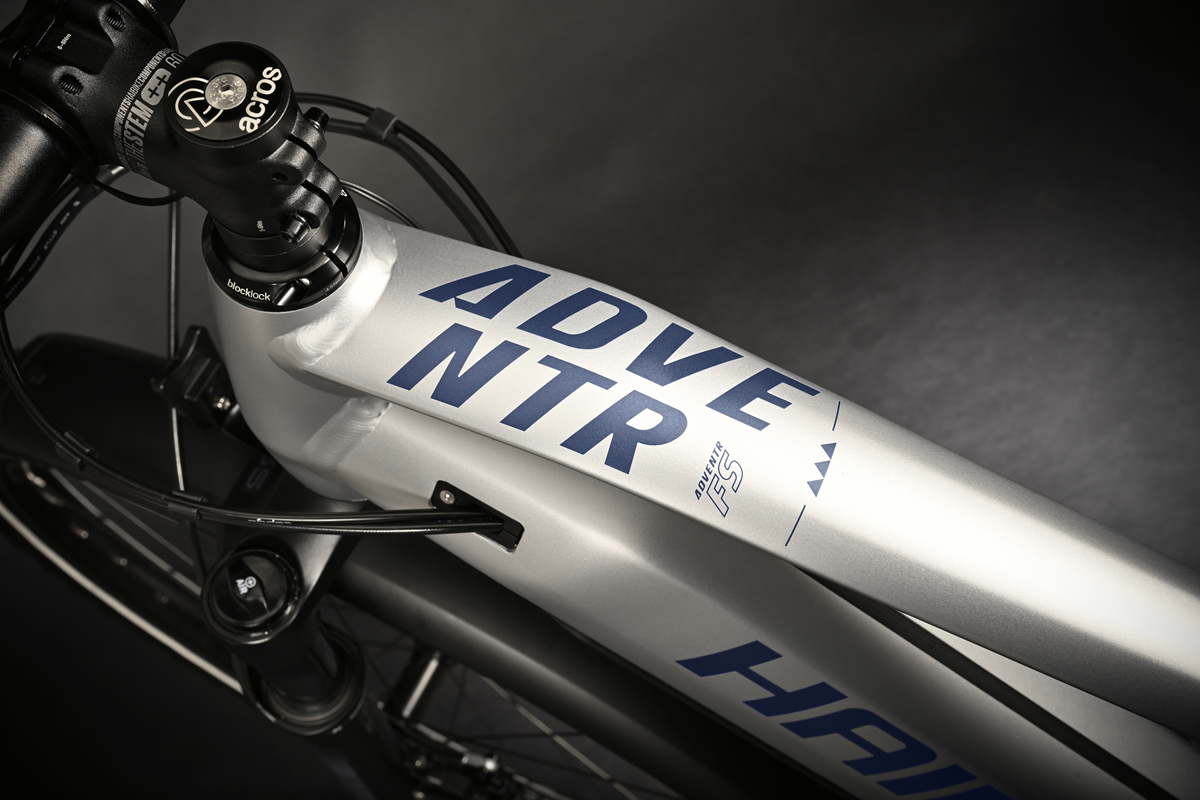

- HEADSETAcros, BlockLock, Aluminium
- SADDLESelle Royal, Vivo
- SEAT POSTHaibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
- PEDALSFreeridepedal, Aluminium, with Reflector
- HEADLIGHTHerrmans, H-Black MR8 E, 50 lm
- REAR LIGHTAXA, Juno Ebike
- DYNAMOvia system battery

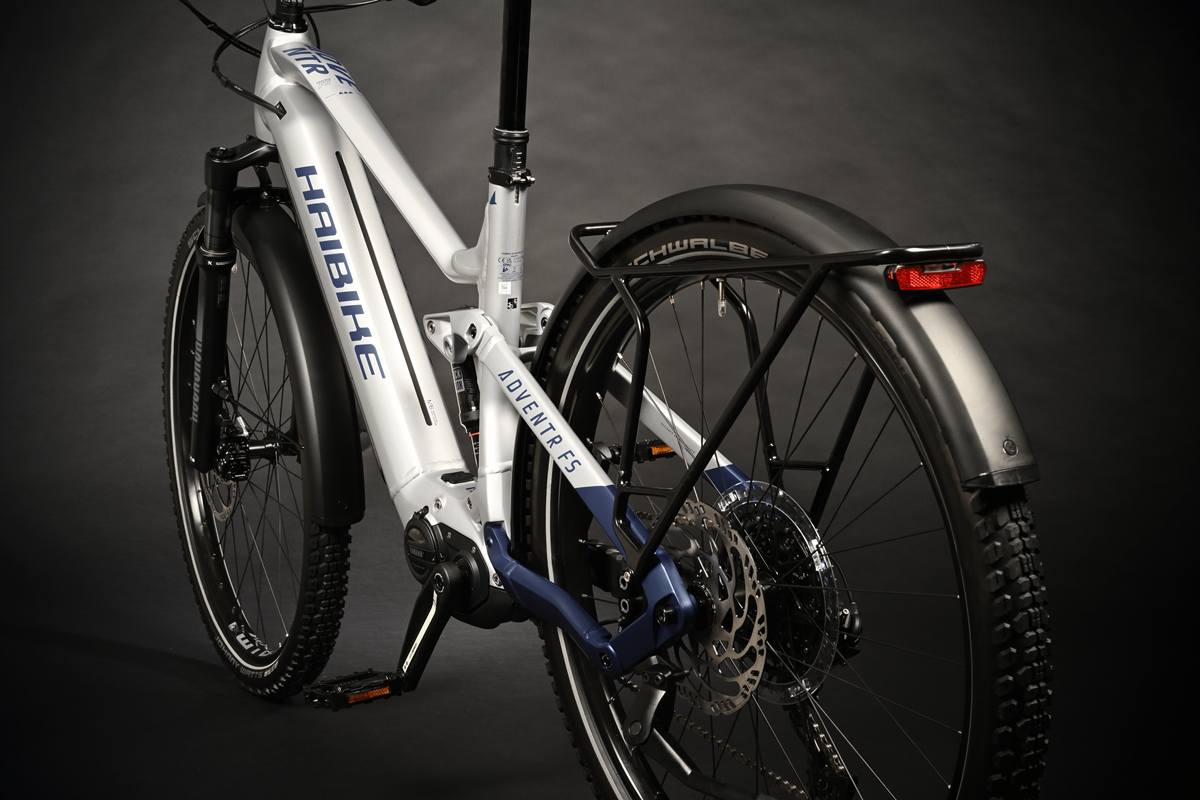

- CARRIERStandWell, system carrier
- FENDERSCurana, Apollo 75, Aluminium
- STANDUrsus, Mooi, Rear stand
- PERMITTED TOTAL WEIGHT150.0 kg
- GEAR SHIFTShimano, Nexus
GEOMETRY
| FRAME SIZE (I.E. S, M, ...) | S | M | L | XL |
|---|---|---|---|---|
| A | ||||
| B | ||||
| C | ||||
| D | ||||
| E | ||||
| F | ||||
| G | ||||
| H | ||||
| I | ||||
| J | ||||
| K | ||||
| L |
