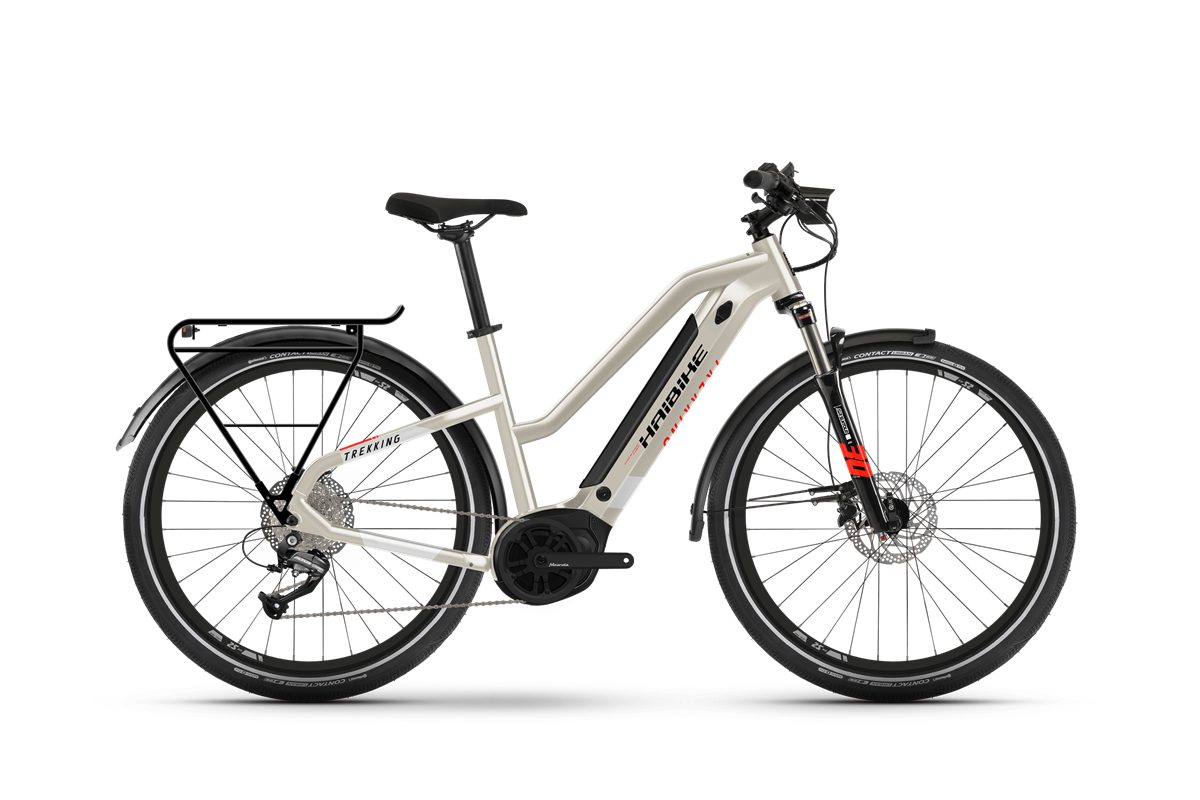

Habike Trekking 4 (Low Standover)
ABOUT THE BIKE
With the Trekking 4 MID and its extra comfortable geometry, you are well prepared for longer rides. The powerful Yamaha PW-TE motor gives you the boost you need for many miles - whether on your commute to work or on a multi-day ride with luggage. The German traffic licensing regulations-compliant equipment makes this eTrekking bike the ideal companion for all your trips.
KEY FEATURES
FRAME MATERIAL
Aluminium
DRIVE UNIT
Yamaha PW-TE System, 60 Nm, 25 km/h
BATTERY
Yamaha InTube 500Wh
FORK
SR Suntour NEX E25, Travel: 63mm
SPECIFICATIONS
- ENGINEYamaha, PW-TE System, 250 W, 60 Nm, 25 km/h
- DISPLAYYamaha, Side Switch, 1.7" LCD, 7 functions
- BATTERYInTube, 500 Wh
- FRAME FAMILYHaibike, Trekking Yamaha i500/i400, Aluminium 6061
- FORKSR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
- CRANK ARMHaibike, Forged, Aluminium
- BRAKE (FRONT)Alhonga, HT474, Hydraulic disc brakes
- BRAKE (REAR)Alhonga, HT474, Hydraulic disc brakes
- TUBEDunlop valve
- RIMSchürmann, Yak25, With Eyelets, Double Wall, Aluminium
- CLAMPING RINGquick release, Quick release, 34.9 mm
- REAR DERAILLEURShimano, Altus M2000
- SHIFT LEVERShimano, Alivio M3100, Trigger switch
- BOTTOM BRACKETintegrated in the motor
- SPROCKETShimano, HG200, 11 - 36 teeth
- CHAINKMC, e9S
- CHAINRINGSteel, 38 teeth
- BRAKE LEVERAlhonga, HT474, Aluminium
- BRAKE DISC (FRONT)Alhonga, DXR1806, 180 mm
- BRAKE DISC (REAR)Alhonga, DXR1806, 180 mm
- TYREContinental, Contact Urban, 55-584, 27.5 x 2.2 inch
- FRONT WHEEL HUBHaibike, TheHub ++, 6-bolt standard
- REAR WHEEL HUBHaibike, TheHub ++, 6-bolt standard
- SPOKESSapim, Leader
- HANDLEBARXLC, Topflat, 720 mm
- GRIPSXLC, Comfort bo3
- STEMXLC, Alu, A-head
- HEADSETFeimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminium
- SADDLESelle Royal, Wave
- SEAT POSTXLC, Aluminium, Patent, 31.6 mm
- PEDALSVP, E461, Aluminium, with Reflector
- HEADLIGHTTrelock, Bike - i Veo LS230, 20 lm
- REAR LIGHTAXA, Juno Ebike
- DYNAMOvia system battery
- CARRIERMassload, Systemgepäckträger
- FENDERSEurofender, Tempo, ChromoplasticsSKS, Chromoplastics
- STANDUrsus, Mooi, Rear stand
- PERMITTED TOTAL WEIGHT130.0 kg
GEOMETRY
| FRAME SIZE (I.E. S, M, ...) | S | M | L | XL |
|---|---|---|---|---|
| A | ||||
| B | ||||
| D | ||||
| E | ||||
| F | ||||
| G | ||||
| H | ||||
| I | ||||
| J | ||||
| K | ||||
| L |
