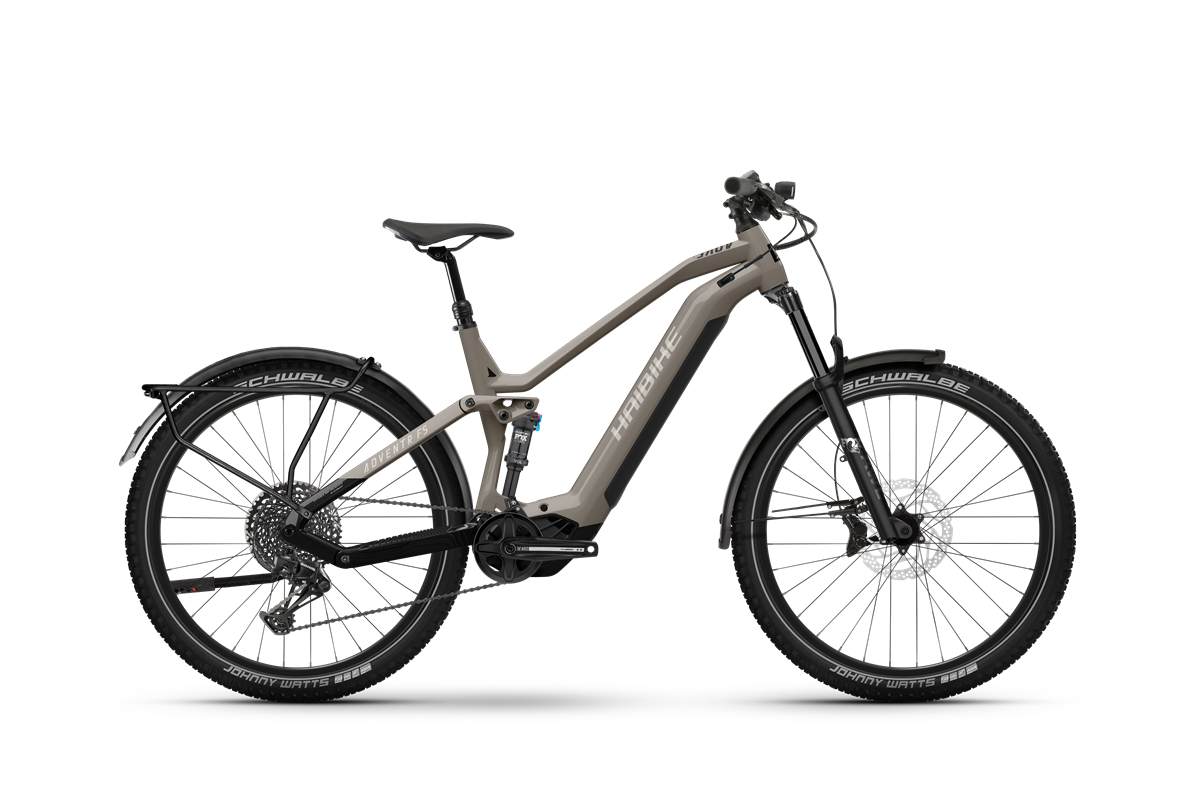

Haibike Adventr FS 10

£5,499.00
Check availability
  • Contact Us

ABOUT THE BIKE

Life is made for adventure! With our new full-suspension Haibike Adventr FS 10 with 29" wheels, you are perfectly equipped for it. Thanks to the new compact and even more powerful Yamaha PW-X3 motor with 85 Nm and a 750 Wh battery, this e-trekking bike will take you over the highest mountains and through the deepest valleys. And if your tour takes you a bit further, you can easily attach an additional battery via the Range Extender to increase your range by another 360 Wh. With 140 mm front and rear suspension travel, a carrier, mudguards, integrated lighting and a side stand, you have all the hardware you need for unforgettable tours. What are you waiting for?

KEY FEATURES

  • Frame material

    FRAME MATERIAL

    Aluminium
  • Drive unit

    DRIVE UNIT

    Yamaha PW-X3, 85Nm, 25km/h
  • Battery

    BATTERY

    InTube 750Wh
  • Fork

    FORK

    FOX 34 Float AWL, Travel: 140mm

SPECIFICATIONS

    • ENGINE
      Yamaha, PW-X3, 250 Wh, 85 Nm
    • DISPLAY
      Yamaha, Side Switch, 1.7" LCD, 7 functions
    • BATTERY
      InTube, 750 Wh
    • FRAME FAMILY
      Haibike, Adventr FS PW-X3, Aluminium
    • FORK
      FOX, 34 Float AWL, Air, 140 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
    • DAMPER
      FOX, Float DPS Performance EVOL LV Trunnion, Air, Trunnion
    • CRANK ARM
      Haibike Components, The Crank +++, Aluminium
    • BRAKE (FRONT)
      Shimano, MT420, 4-piston disc brake
    • BRAKE (REAR)
      Shimano, MT420, 4-piston disc brake
    • TUBE
      Presta valve
    • RIM
      WTB, ST i30 TCS, Double Wall
    • CLAMPING RING
      Internal hexagon, 38.1 mm
    • REAR DERAILLEUR
      Sram, NX Eagle
    • SHIFT LEVER
      Sram, NX Eagle, Trigger switch
    • BOTTOM BRACKET
      integrated in the motor
    • SPROCKET
      Sram, Eagle PG1230, 11 - 50 teeth
    • CHAIN
      Sram, SX Eagle
    • CHAINRING
      Sram, 38 teeth
    • CHAIN GUIDE
      Nylon directmount
    • BRAKE LEVER
      Shimano, MT401, Aluminium
    • BRAKE DISC (FRONT)
      Shimano, RT EM64LEC, 203 mm
    • BRAKE DISC (REAR)
      Shimano, RT EM600L, 203 mm
    • TYRE
      Schwalbe, Johnny Watts Performance, 60-622, 29 x 2.4 inch
    • FRONT WHEEL HUB
      Shimano, MT400-B, Centerlock
    • REAR WHEEL HUB
      Shimano, MT400-B, Centerlock
    • SPOKES
      Sapim, Leader
    • HANDLEBAR
      Haibike Components, TheBar ++, 780 mm
    • GRIPS
      XLC, Comfort bo3
    • STEM
      Alu, A-head, 31.8 mm
    • HEADSET
      Acros, BlockLock, Aluminium
    • SADDLE
      fi'zi:k, Terra Aidon X5-160
    • SEAT POST
      Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
    • PEDALS
      Freeridepedal, Aluminium, with Reflector
    • HEADLIGHT
      AE-130, 130 lm
    • REAR LIGHT
      Adventr TBD
    • DYNAMO
      via system battery
    • CARRIER
      StandWell, system carrier
    • FENDERS
      Curana, Apollo 75, Aluminium
    • STAND
      Ursus, Mooi, Rear stand
    • PERMITTED TOTAL WEIGHT
      150.0 kg

GEOMETRY

FRAME SIZE (I.E. S, M, ...)SMLXL
AFRAME HEIGHT (CM)41.0 cm44.0 cm47.0 cm50.0 cm
BSEAT TUBE ANGLE75.0 degrees75.0 degrees75.0 degrees75.0 degrees
CSEAT TUBE OFFSET (MM)23.0 mm23.0 mm23.0 mm23.0 mm
DSEAT ANGLE77.0 degrees77.0 degrees76.9 degrees76.9 degrees
EHEAD TUBE LENGTH140.0 mm140.0 mm150.0 mm150.0 mm
FHEAD TUBE ANGLE (DEGREES)65.0 degrees65.5 degrees66.0 degrees66.5 degrees
GTOP TUBE HORIZONTAL570.0 mm585.0 mm600.0 mm620.0 mm
HCHAIN STAY LENGTH480.0 mm480.0 mm480.0 mm480.0 mm
IBOTTOM BRACKET DROP-35.0 mm-35.0 mm-35.0 mm-35.0 mm
JWHEELBASE1234.0 mm1243.0 mm1253.0 mm1267.0 mm
KSTACK651.0 mm654.0 mm666.0 mm669.0 mm
LREACH419.0 mm434.0 mm445.0 mm465.0 mm
