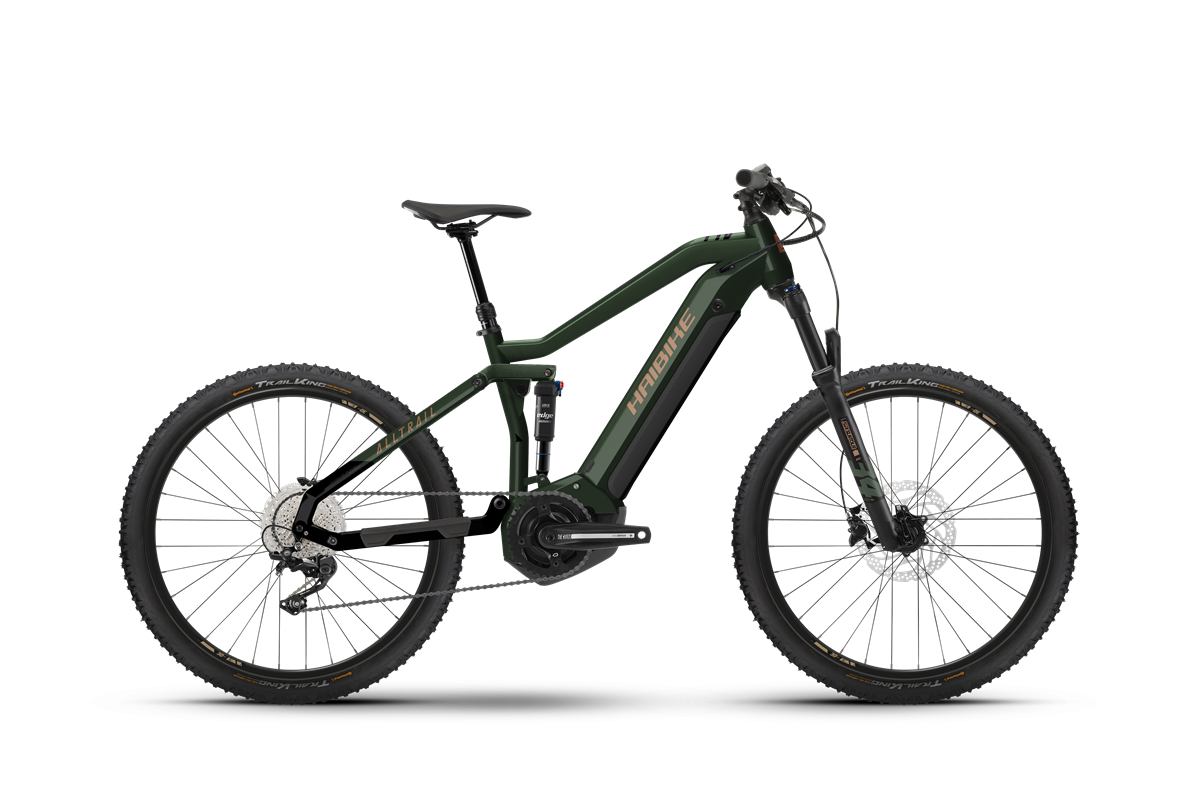

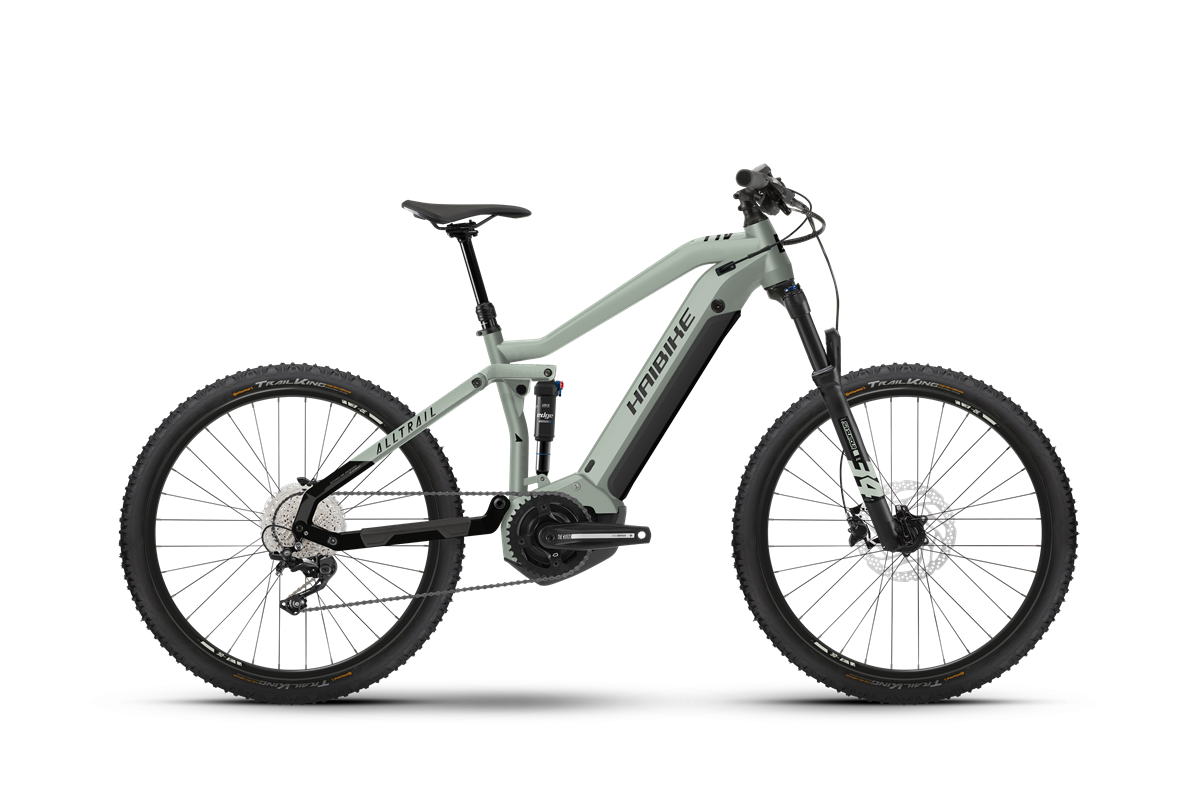

Haibike All Trail 4 27.5" - 2022

£3,149.00
Check availability
  • Contact Us

ABOUT THE BIKE

The 2022 AllTrail 4 27.5 not only looks good, but also cuts a fine figure in more demanding terrain. Uphill, the Yamaha PW-ST drive with integrated 630 Wh battery supports you powerfully from the first step on the pedals. With the reliable brake and gear components from Shimano, you have your bike under control in every situation. A suspension travel of 140 mm at the front and a full 150 mm at the rear ensures sufficient comfort even on rougher descents.

KEY FEATURES

  • Frame material

    FRAME MATERIAL

    Aluminium
  • Drive unit

    DRIVE UNIT

    Yamaha PW-ST System, 70Nm, 25km/h
  • Battery

    BATTERY

    InTube 630Wh
  • Fork

    FORK

    SR Suntour XCR34 COIL LO, Travel: 140mm

SPECIFICATIONS

    • ENGINE
      Yamaha, PW-ST System, 250 Wh, 70 Nm, 25 km/h
    • DISPLAY
      Yamaha, Side Switch, 1.7" LCD, 7 functions
    • BATTERY
      Yamaha, InTube, 630 Wh
    • FRAME FAMILY
      Haibike, FullSeven Yamaha i630, Aluminium 6061
    • FORK
      SR Suntour, XCR34 COIL LO, Steel spring, 140 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
    • DAMPER
      SR Suntour, Edge LO-R8, Air, Trunnion Mount
    • CRANK ARM
      Haibike Components, The Crank +, Aluminium
    • BRAKE (FRONT)
      Shimano, MT410, Hydraulic disc brakes
    • BRAKE (REAR)
      Shimano, MT410, Hydraulic disc brakes
    • TUBE
      Presta valve
    • RIM
      Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium
    • CLAMPING RING
      Internal hexagon, 34.9 mm
    • REAR DERAILLEUR
      Shimano, Deore M5100
    • SHIFT LEVER
      Shimano, Deore M5100, Trigger switch
    • BOTTOM BRACKET
      integrated in the motor
    • SPROCKET
      Shimano, M5100, 11 - 51 teeth
    • CHAIN
      KMC, X11e
    • CHAINRING
      Steel, 38 teeth
    • CHAIN GUIDE
      Nylon directmount
    • BRAKE LEVER
      Shimano, MT401, Aluminium
    • BRAKE DISC (FRONT)
      Shimano, RT30-M, 180 mm
    • BRAKE DISC (REAR)
      Shimano, RT30-M, 180 mm
    • TYRE
      Continental, Trail King, 65-584, 27.5 x 2.6 inch
    • FRONT WHEEL HUB
      Shimano, MT400-B, Centerlock
    • REAR WHEEL HUB
      Shimano, MT400-B, Centerlock
    • SPOKES
      Sapim, Leader
    • HANDLEBAR
      Haibike Components, TheBar ++, 780 mm
    • GRIPS
      Haibike, MTB grips
    • STEM
      Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees
    • HEADSET
      Feimin, A-Head Tapered, Ball bearing
    • SADDLE
      Selle Bassano, Reko R2 E-Sport
    • SEAT POST
      Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm
    • PEDALS
      Freeridepedal, Aluminium, with Reflector
    • PERMITTED TOTAL WEIGHT
      120.0 kg

GEOMETRY

FRAME SIZE (I.E. S, M, ...)SML
AFRAME HEIGHT (CM)40.0 cm44.0 cm48.0 cm
BSEAT TUBE ANGLE73.0 degrees73.0 degrees73.0 degrees
DSEAT ANGLE73.0 degrees73.0 degrees73.0 degrees
EHEAD TUBE LENGTH140.0 mm125.0 mm130.0 mm
FHEAD TUBE ANGLE (DEGREES)67.0 degrees67.0 degrees67.0 degrees
GTOP TUBE HORIZONTAL590.0 mm600.0 mm620.0 mm
HCHAIN STAY LENGTH470.0 mm470.0 mm470.0 mm
IBOTTOM BRACKET DROP0.0 mm0.0 mm0.0 mm
JWHEELBASE1180.0 mm1188.0 mm1208.0 mm
KSTACK614.0 mm600.0 mm605.0 mm
LREACH402.0 mm417.0 mm435.0 mm
