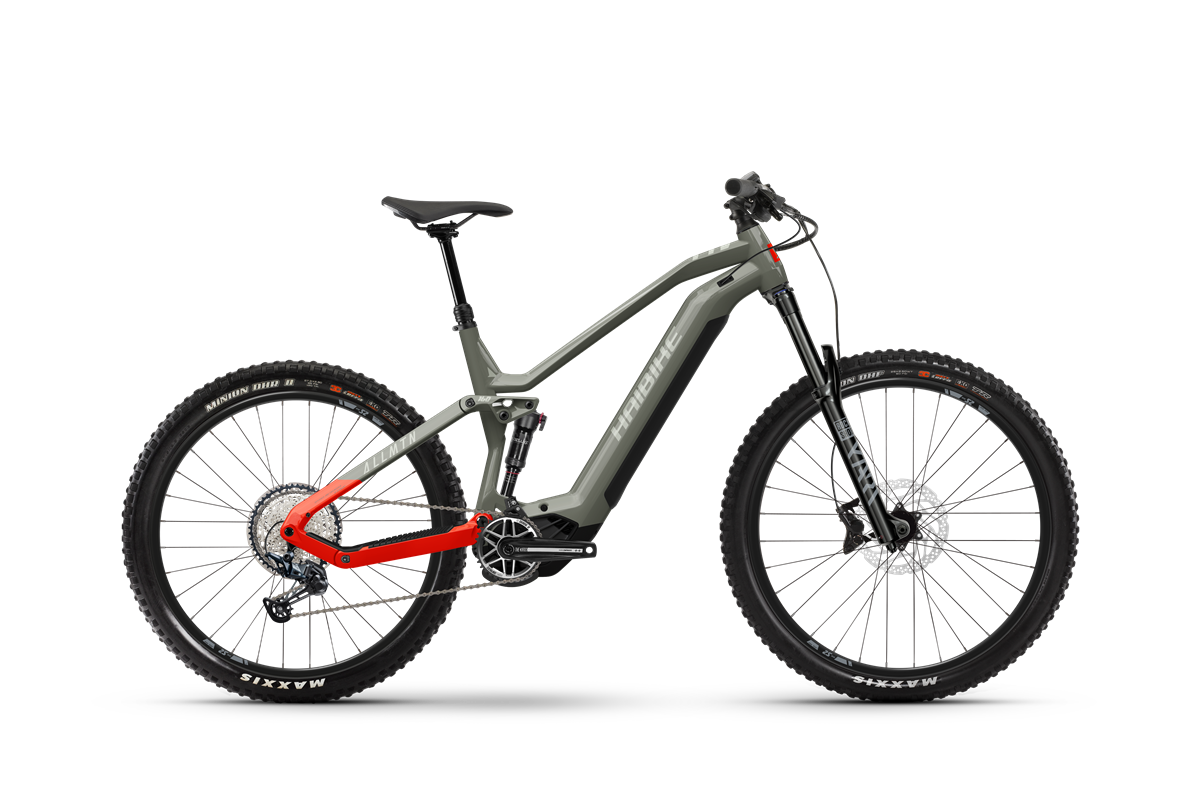

Haibike All Mtn 4 - 2022

£4,699.00
Check availability
  • Contact Us

ABOUT THE BIKE

The AllMtn 4 is at home on demanding trails: Thanks to the 160 mm travel of the RockShox Yari air suspension fork, reliable Shimano gear and brake components as well as the 29"/27.5" wheel mix, you can safely roll over roots and scree and have your eMTB fully under control at all times. The new lighter and more powerful Yamaha PW-X3 motor gives you the necessary power on the mountain, and you don't have to worry about the range even on longer tours: The optional Range Extender expands your battery capacity by 360 Wh, allowing you to redefine your limits.

KEY FEATURES

  • Drive unit

    DRIVE UNIT

    Yamaha PW-X3, 85Nm, 25km/h
  • Battery

    BATTERY

    InTube 750Wh
  • Fork

    FORK

    RockShox Yari RC, Travel: 160mm
  • Mixed wheel sizes

    MIXED WHEEL SIZES

    27.5" / 29"

SPECIFICATIONS

    • ENGINE
      Yamaha, PW-X3, 250 Wh, 85 Nm
    • DISPLAY
      Yamaha, Side Switch, 1.7" LCD, 7 functions
    • BATTERY
      InTube, 750 Wh
    • FRAME FAMILY
      Haibike, AllMtn PW-X3, Aluminium
    • FORK
      RockShox, Yari RC, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
    • DAMPER
      RockShox, Deluxe Select Plus, Air, Trunnion Mount
    • CRANK ARM
      Haibike Components, The Crank ++, Aluminium
    • BRAKE (FRONT)
      Shimano, M6120, Hydraulic disc brakes
    • BRAKE (REAR)
      Shimano, M6120, Hydraulic disc brakes
    • TUBE
      Presta valve
    • RIM
      WTB, ST i30 TCS, Double Wall
    • CLAMPING RING
      Internal hexagon, 38.1 mm
    • REAR DERAILLEUR
      Shimano, SLX M7100
    • SHIFT LEVER
      Shimano, Deore SLX M7100
    • BOTTOM BRACKET
      integrated in the motor
    • SPROCKET
      Shimano, M6100, 10 - 51 teeth
    • CHAIN
      Shimano, CN-M6100
    • CHAINRING
      Haibike Components, Aluminium, 36 teeth
    • CHAIN GUIDE
      Nylon directmount
    • BRAKE LEVER
      Shimano, Deore M6100, Aluminium
    • BRAKE DISC (FRONT)
      Shimano, RT30-L, 203 mm
    • BRAKE DISC (REAR)
      Shimano, RT EM300L, 203 mm
    • TYRE
      Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch
    • FRONT WHEEL HUB
      Shimano, MT410-B, Centerlock
    • REAR WHEEL HUB
      Shimano, MT410, Centerlock
    • SPOKES
      Sapim, Race
    • HANDLEBAR
      Haibike Components, TheBar +++, 780 mm
    • GRIPS
      Haibike, MTB grips
    • STEM
      Haibike Components, TheStem +++, 31.8 mm
    • HEADSET
      Acros, BlockLock, Aluminium
    • SADDLE
      Selle Royal, Vivo
    • SEAT POST
      Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
    • PEDALS
      Freeridepedal, Aluminium, with Reflector
    • PERMITTED TOTAL WEIGHT
      150.0 kg
    • TYRE (REAR)
      Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch
    • RIM (REAR)
      WTB, ST i35 TCS, Double Wall

GEOMETRY

FRAME SIZE (I.E. S, M, ...)SMLXL
AFRAME HEIGHT (CM)41.0 cm44.0 cm47.0 cm50.0 cm
BSEAT TUBE ANGLE75.0 degrees75.0 degrees75.0 degrees75.0 degrees
CSEAT TUBE OFFSET (MM)23.0 mm23.0 mm23.0 mm23.0 mm
DSEAT ANGLE77.0 degrees77.0 degrees77.0 degrees76.9 degrees
EHEAD TUBE LENGTH120.0 mm120.0 mm130.0 mm140.0 mm
FHEAD TUBE ANGLE (DEGREES)64.5 degrees64.5 degrees64.5 degrees64.5 degrees
GTOP TUBE HORIZONTAL570.0 mm600.0 mm627.0 mm659.0 mm
HCHAIN STAY LENGTH460.0 mm460.0 mm460.0 mm460.0 mm
IBOTTOM BRACKET DROP-20.0 mm-20.0 mm-20.0 mm-20.0 mm
JWHEELBASE1220.0 mm1250.0 mm1279.0 mm1313.0 mm
KSTACK646.0 mm646.0 mm655.0 mm664.0 mm
LREACH421.0 mm451.0 mm475.0 mm505.0 mm
