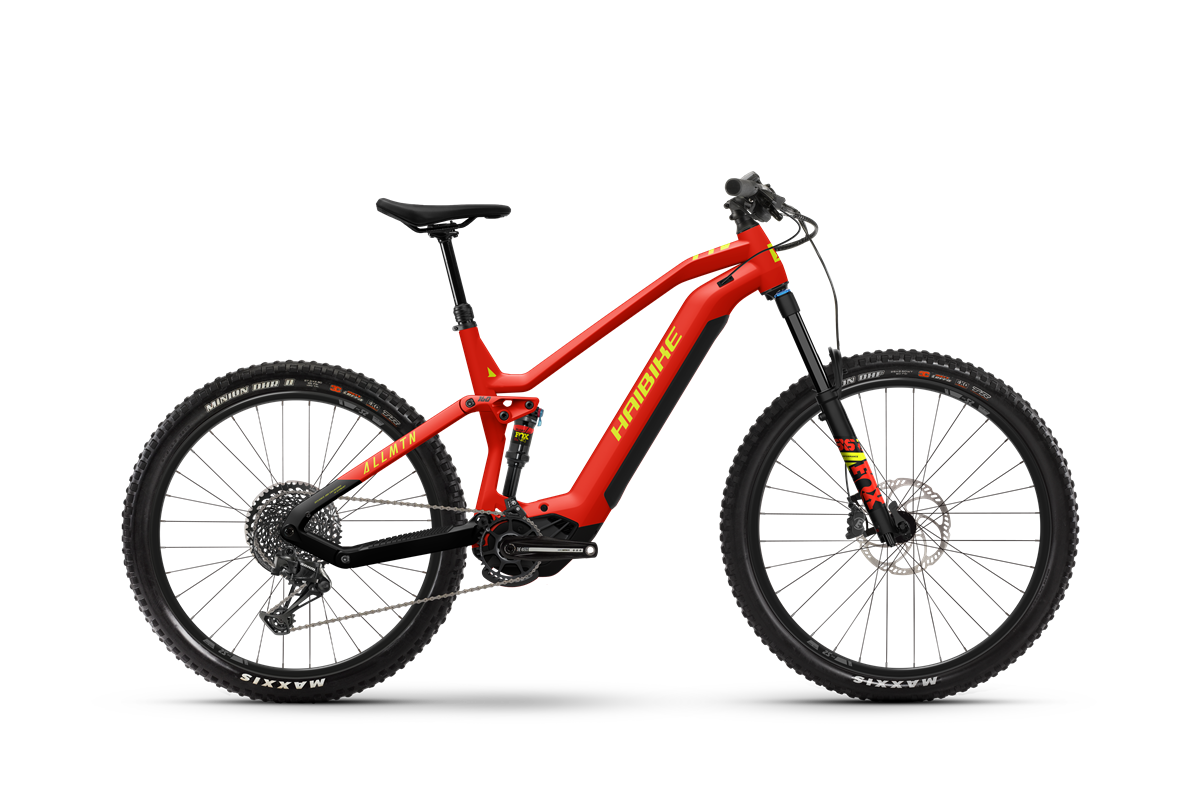

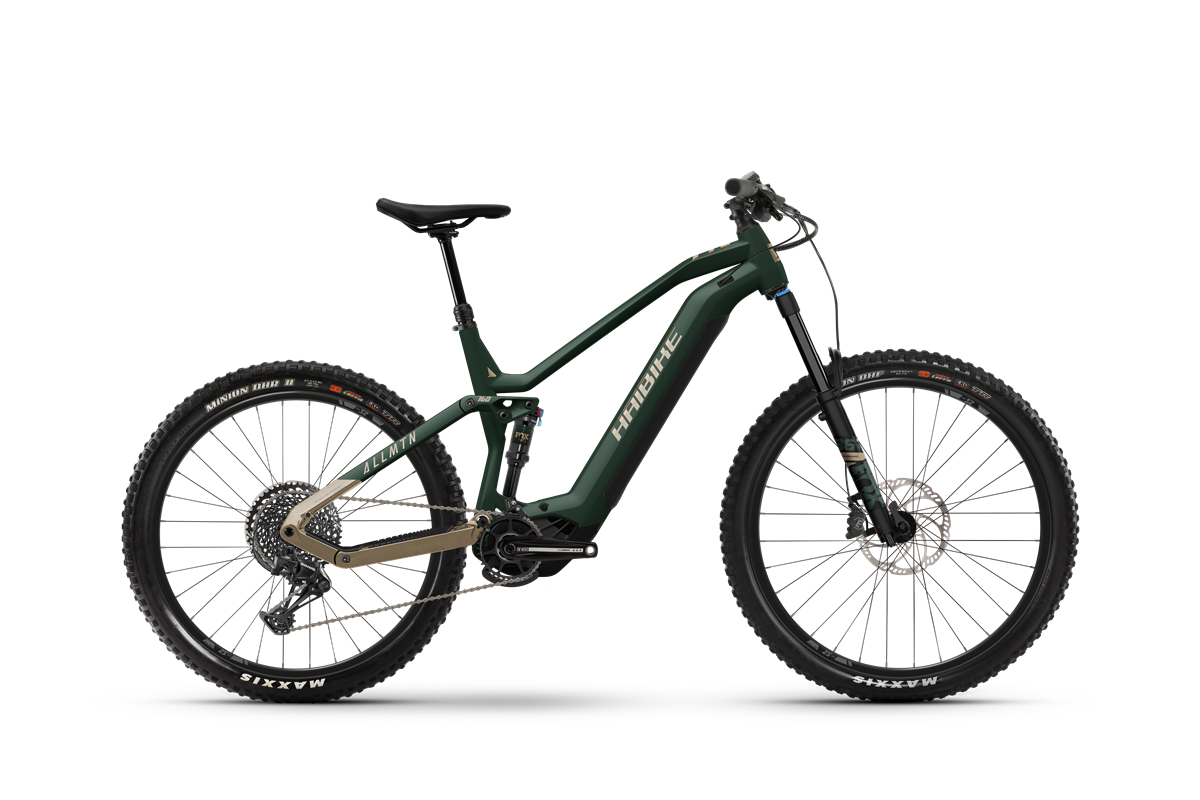

Haibike AllMtn 7 - 2022

£5,849.00
check size for availability
Check availability
  • Contact Us

ABOUT THE BIKE

The 2022 Haibike AllMtn 7 eMTB offers you uncompromising ePerformance on the trail: The new smaller yet more powerful Yamaha PW-X3 motor offers even better support and, thanks to the larger 750 Wh battery, even more range for even longer rides. The wheel size mix of 29"/27.5" ensures optimum traction uphill and smooth rolling downhill. With the 160 mm FOX 36 Float Performance air suspension fork, a SRAM GX Eagle rear derailleur and Magura MT7 4-piston disc brakes, you are perfectly equipped for any adventure and can master jumps or demanding lines safely and confidently.

KEY FEATURES

  • Drive unit

    DRIVE UNIT

    Yamaha PW-X3, 85Nm, 25km/h
  • Battery

    BATTERY

    InTube 750Wh
  • Fork

    FORK

    FOX 36 Float Performance, Travel: 160mm
  • Mixed wheel sizes

    MIXED WHEEL SIZES

    27.5" / 29"

SPECIFICATIONS

    • ENGINE
      Yamaha, PW-X3, 250 Wh, 85 Nm
    • DISPLAY
      Yamaha, Interface - X
    • BATTERY
      InTube, 750 Wh
    • FRAME FAMILY
      Haibike, AllMtn PW-X3, Aluminium
    • FORK
      FOX, 36 Float Performance Luft 160, Lockout, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
    • DAMPER
      FOX, Float DPS Performance EVOL LV Trunnion, Air, Trunnion
    • CRANK ARM
      Haibike Components, The Crank ++, Aluminium
    • BRAKE (FRONT)
      Magura, MT7, 4-piston disc brake
    • BRAKE (REAR)
      Magura, MT7, 4-piston disc brake
    • TUBE
      Presta valve
    • RIM
      WTB, ST i30 TCS, Double Wall
    • CLAMPING RING
      Internal hexagon, 38.1 mm
    • REAR DERAILLEUR
      Sram, GX Eagle
    • SHIFT LEVER
      Sram, CX Eagle, Trigger switch
    • BOTTOM BRACKET
      integrated in the motor
    • SPROCKET
      Sram, Eagle PG1230, 11 - 50 teeth
    • CHAIN
      Sram, SX Eagle
    • CHAINRING
      Sram, 38 teeth
    • CHAIN GUIDE
      Nylon directmount
    • BRAKE LEVER
      Magura, MT7 HC-lever
    • BRAKE DISC (FRONT)
      Magura, MDR-P 203, 203 mm
    • BRAKE DISC (REAR)
      Magura, MDR-P 203, 203 mm
    • TYRE
      Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch
    • FRONT WHEEL HUB
      Haibike Components, The Hub ++, 6-bolt standard
    • REAR WHEEL HUB
      Haibike Components, TheHub ++ Thru axle 12x148, 6-bolt standard
    • SPOKES
      Sapim, Race
    • HANDLEBAR
      Haibike Components, TheBar +++, 780 mm
    • GRIPS
      Haibike, MTB grips
    • STEM
      Haibike Components, TheStem +++, 31.8 mm
    • HEADSET
      Acros, BlockLock, Aluminium
    • SADDLE
      fi'zi:k, Terra Aidon X5-160
    • SEAT POST
      Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
    • PEDALS
      Freeridepedal, Aluminium, with Reflector
    • PERMITTED TOTAL WEIGHT
      150.0 kg
    • TYRE (REAR)
      Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch
    • RIM (REAR)
      WTB, ST i35 TCS, Double Wall

GEOMETRY

FRAME SIZE (I.E. S, M, ...)SMLXL
AFRAME HEIGHT (CM)41.0 cm44.0 cm47.0 cm50.0 cm
BSEAT TUBE ANGLE75.0 degrees75.0 degrees75.0 degrees75.0 degrees
CSEAT TUBE OFFSET (MM)23.0 mm23.0 mm23.0 mm23.0 mm
DSEAT ANGLE77.0 degrees77.0 degrees77.0 degrees76.9 degrees
EHEAD TUBE LENGTH120.0 mm120.0 mm130.0 mm140.0 mm
FHEAD TUBE ANGLE (DEGREES)64.5 degrees64.5 degrees64.5 degrees64.5 degrees
GTOP TUBE HORIZONTAL570.0 mm600.0 mm627.0 mm659.0 mm
HCHAIN STAY LENGTH460.0 mm460.0 mm460.0 mm460.0 mm
IBOTTOM BRACKET DROP-20.0 mm-20.0 mm-20.0 mm-20.0 mm
JWHEELBASE1220.0 mm1250.0 mm1279.0 mm1313.0 mm
KSTACK646.0 mm646.0 mm655.0 mm664.0 mm
LREACH421.0 mm451.0 mm475.0 mm505.0 mm
