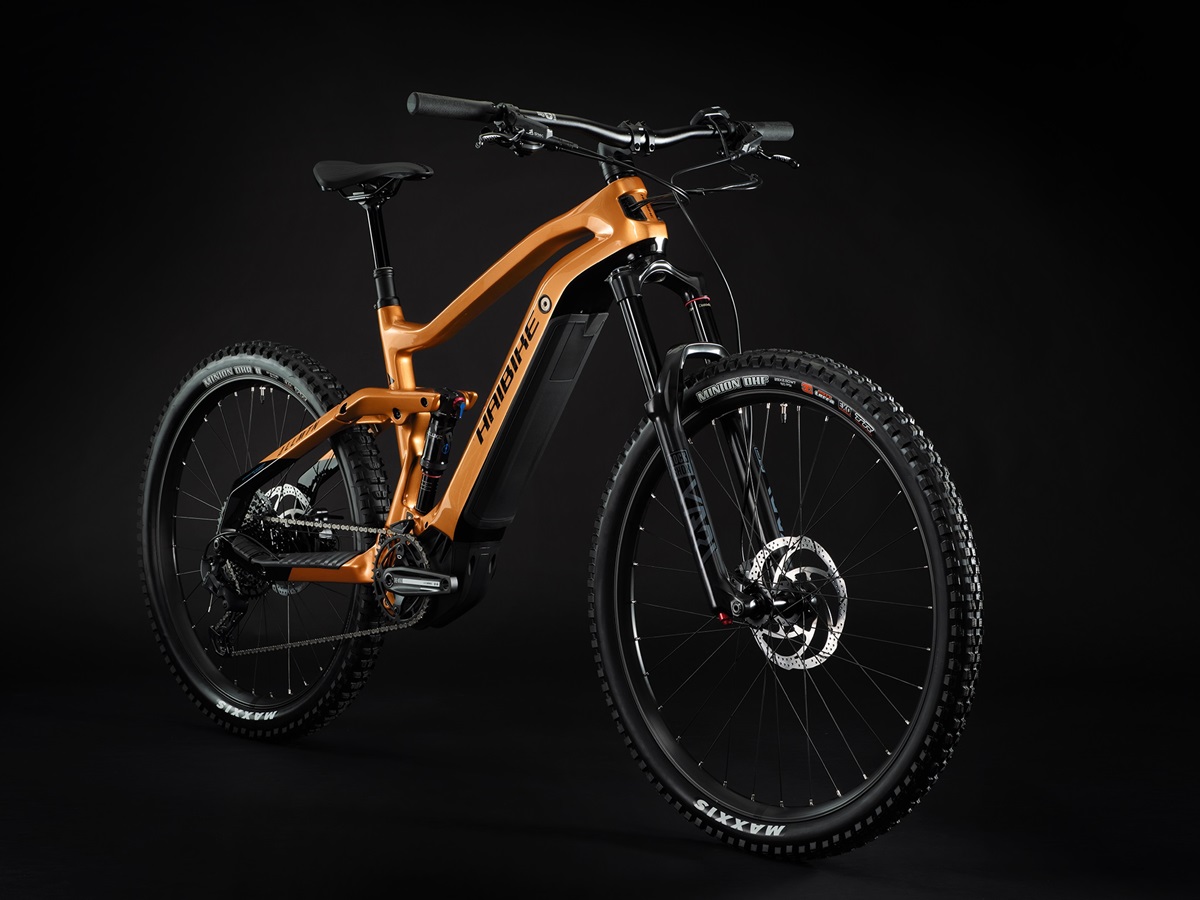

Haibike All Mtn CF 6 - 2022

£4,999.00
check size for availability
Check availability
  • Contact Us

ABOUT THE BIKE

Are you looking for a sporty e-Fully with high-quality components for lots of fun on the trail? Then the new Haibike AllMtn CF 6 should be your choice! With its lightweight all-carbon frame, powerful Yamaha PW-X2 motor and 600 Wh battery as well as a progressive geometry, this e-MTB offers you pure and uncompromising trail e-performance. The SRAM GX Eagle rear derailleur, the RockShox Yari air suspension fork and hydraulic disc brakes ensure that you are well prepared for even demanding terrain and can plunge from one e-mountain bike adventure into the next.

KEY FEATURES

  • Frame material

    FRAME MATERIAL

    Full Carbon
  • Drive unit

    DRIVE UNIT

    Yamaha PW-X2, 80Nm, 25km/h
  • Battery

    BATTERY

    Yamaha InTube 600Wh
  • Fork

    FORK

    RockShox Yari RC, Travel: 160mm

SPECIFICATIONS

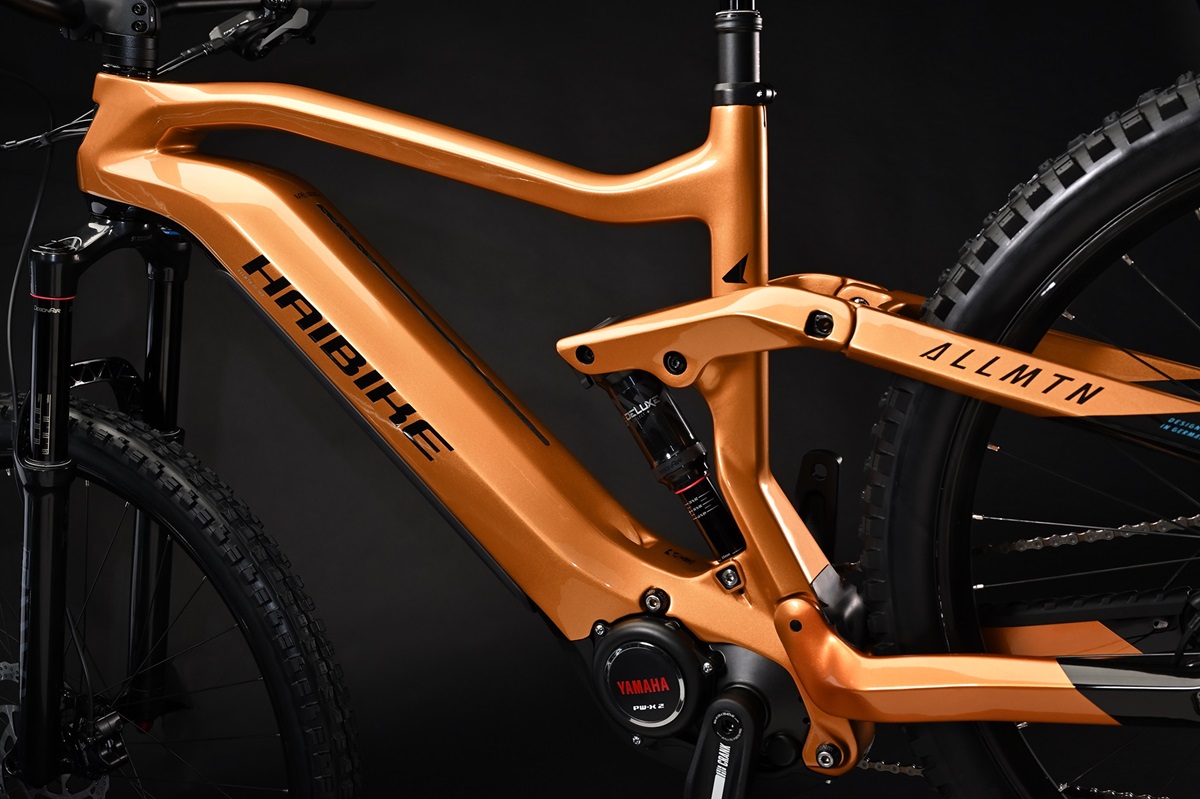

    • ENGINE
      Yamaha, PW-X2, 250 Wh, 80 Nm, 25 km/h
    • DISPLAY
      Yamaha, Side Switch, 1.7" LCD, 7 functions

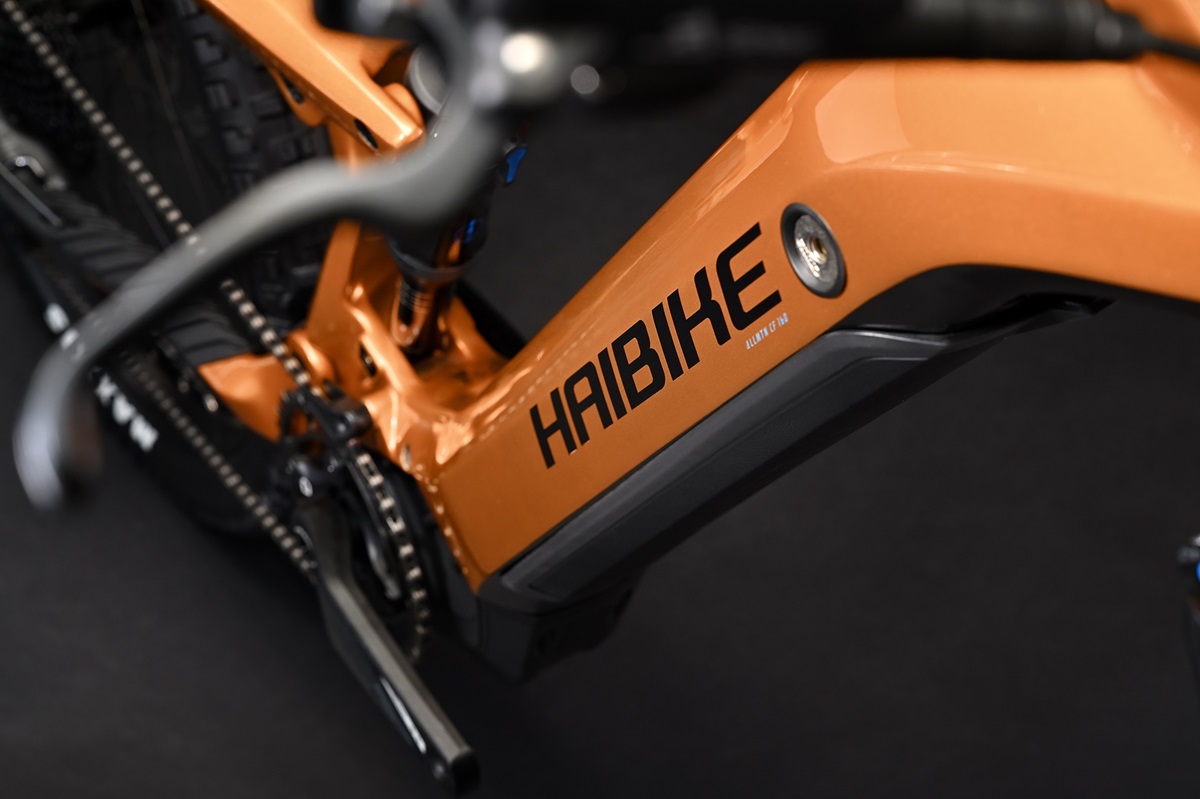

    • BATTERY
      Yamaha, 600 Wh
    • FRAME FAMILY
      Haibike, XDURO AM i600, Carbon
    • FORK
      RockShox, Yari RC, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

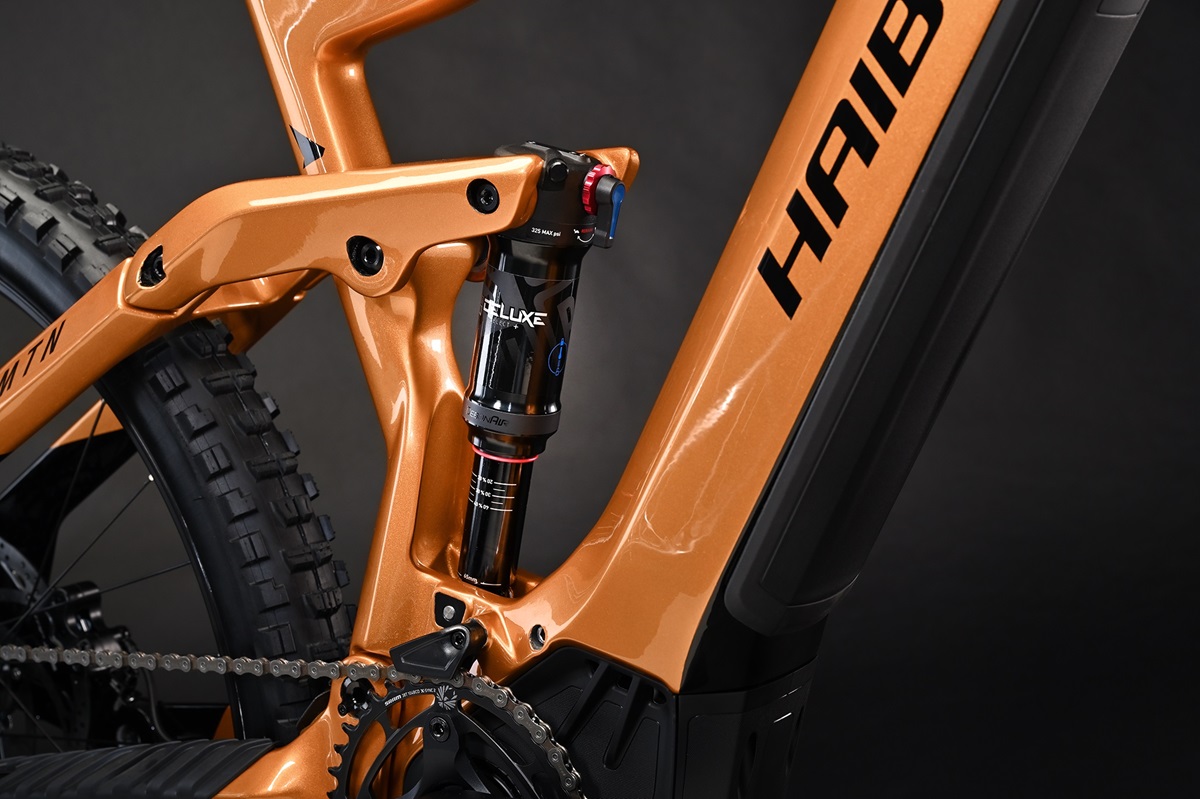

    • DAMPER
      RockShox, Deluxe Select Plus, Air, Trunnion Mount

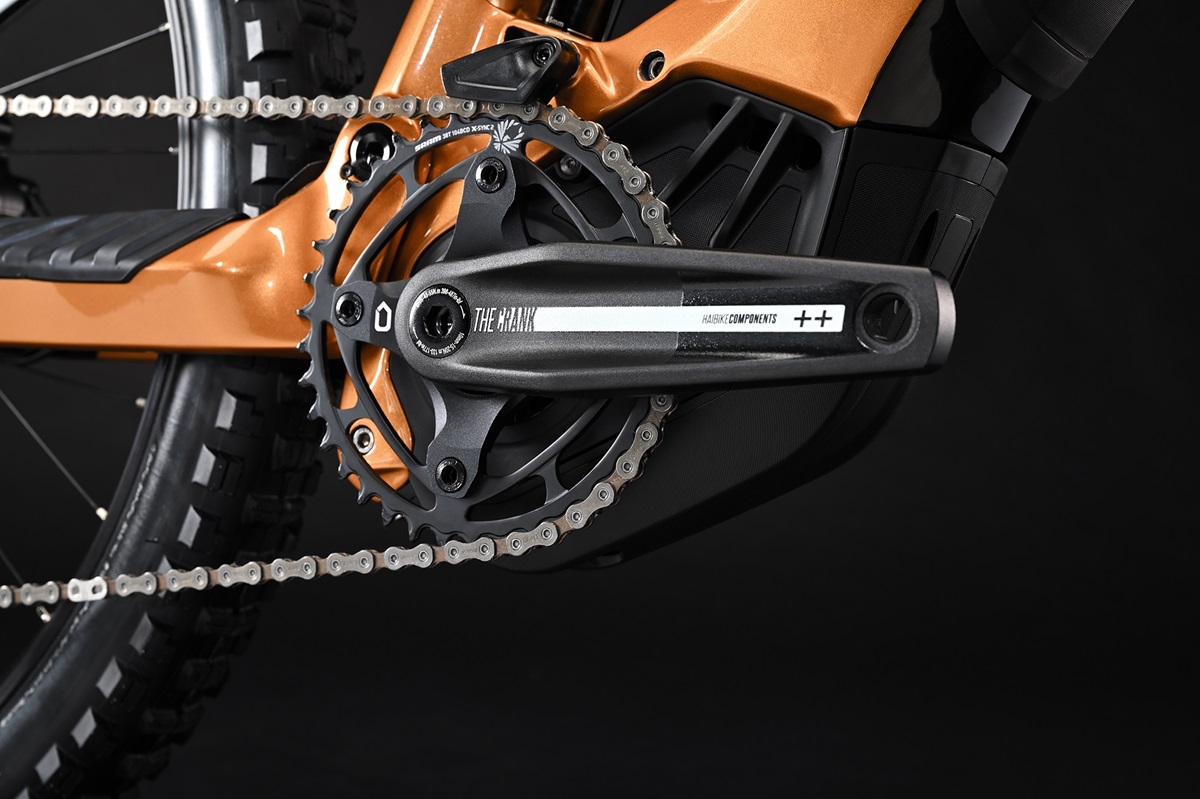

    • CRANK ARM
      Haibike Components, The Crank ++, Aluminium
    • BRAKE (FRONT)
      TRP, Slate T4, Hydraulic disc brakes
    • BRAKE (REAR)
      TRP, Slate T4, Hydraulic disc brakes
    • TUBE
      Presta valve
    • RIM
      WTB, ST i30 TCS, Double Wall
    • CLAMPING RING
      Internal hexagon, 34.9 mm

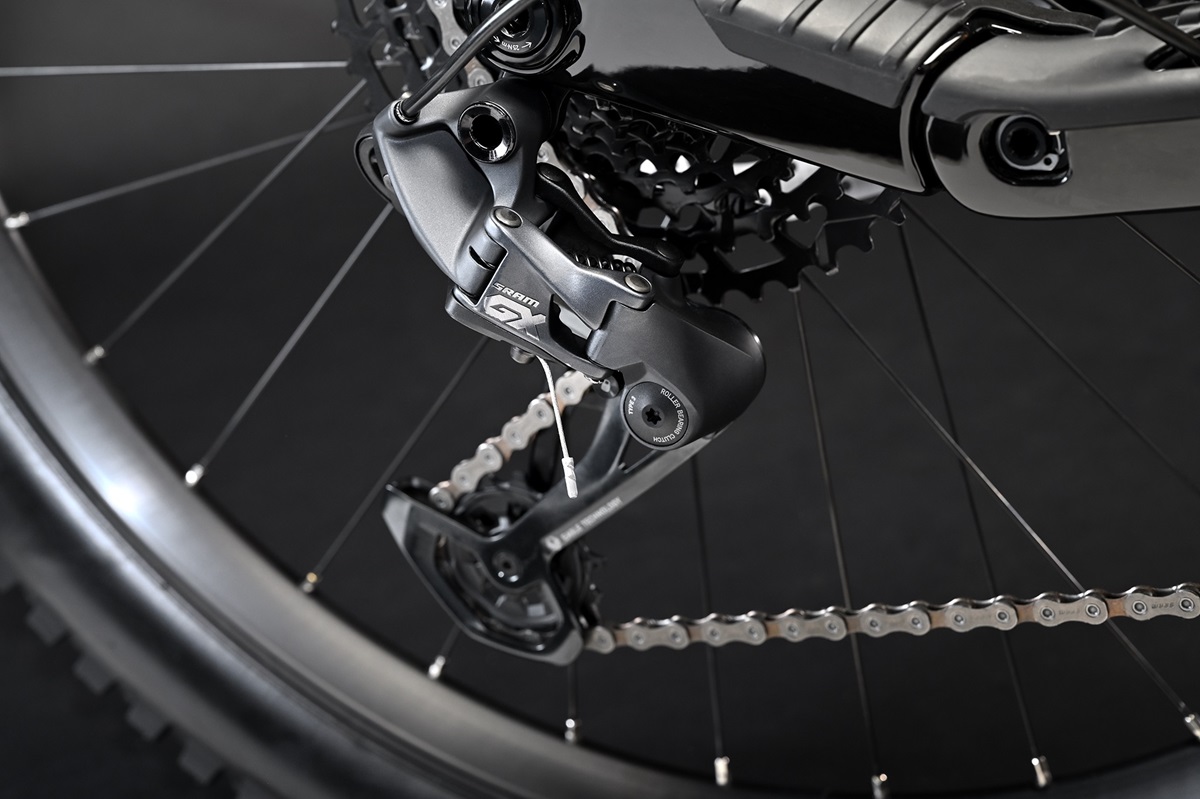

    • REAR DERAILLEUR
      Sram, GX Eagle
    • SHIFT LEVER
      Sram, NX Eagle, Trigger switch
    • BOTTOM BRACKET
      integrated in the motor
    • SPROCKET
      Sram, Eagle PG1230, 11 - 50 teeth
    • CHAIN
      Sram, SX Eagle
    • CHAINRING
      Sram, 38 teeth
    • CHAIN GUIDE
      Nylon directmount
    • BRAKE LEVER
      TRP, Slate T4, Aluminium
    • BRAKE DISC (FRONT)
      TRP, TRP S02M, 203 mm
    • BRAKE DISC (REAR)
      TRP, TRP S02M, 203 mm
    • TYRE
      Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch
    • FRONT WHEEL HUB
      Haibike Components, The Hub ++, 6-bolt standard
    • REAR WHEEL HUB
      Haibike Components, TheHub ++ Thru axle 12x148, 6-bolt standard
    • SPOKES
      Sapim, Leader
    • HANDLEBAR
      Haibike Components, TheBar +++ Gravity, 780 mm
    • GRIPS
      Haibike, MTB grips
    • STEM
      Haibike Components, TheStem 2, A-head, 31.8 mm
    • HEADSET
      Acros, BlockLock, Aluminium
    • SADDLE
      Selle Royal, Vivo
    • SEAT POST
      Dropper-Post Remote, Aluminium, Telescope, 31.6 mm
    • PEDALS
      Freeridepedal, Aluminium, with Reflector
    • PERMITTED TOTAL WEIGHT
      120.0 kg
    • TYRE (REAR)
      Maxxis, Minion DHR II, 71-584, 27.5 x 2.8 inch
    • RIM (REAR)
      WTB, ST i35 TCS, Double Wall

GEOMETRY

FRAME SIZE (I.E. S, M, ...)SMLXL
AFRAME HEIGHT (CM)41.0 cm44.0 cm47.0 cm50.0 cm
BSEAT TUBE ANGLE75.0 degrees75.0 degrees75.0 degrees75.0 degrees
CSEAT TUBE OFFSET (MM)15.0 mm15.0 mm15.0 mm15.0 mm
DSEAT ANGLE75.0 degrees75.0 degrees75.0 degrees75.0 degrees
EHEAD TUBE LENGTH110.0 mm110.0 mm130.0 mm130.0 mm
FHEAD TUBE ANGLE (DEGREES)65.0 degrees65.0 degrees65.0 degrees65.0 degrees
GTOP TUBE HORIZONTAL560.0 mm590.0 mm620.0 mm650.0 mm
HCHAIN STAY LENGTH460.0 mm460.0 mm460.0 mm460.0 mm
IBOTTOM BRACKET DROP-20.0 mm-20.0 mm-20.0 mm-20.0 mm
JWHEELBASE1195.0 mm1225.0 mm1258.0 mm1288.0 mm
KSTACK597.0 mm597.0 mm615.0 mm615.0 mm
LREACH400.0 mm430.0 mm455.0 mm485.0 mm
