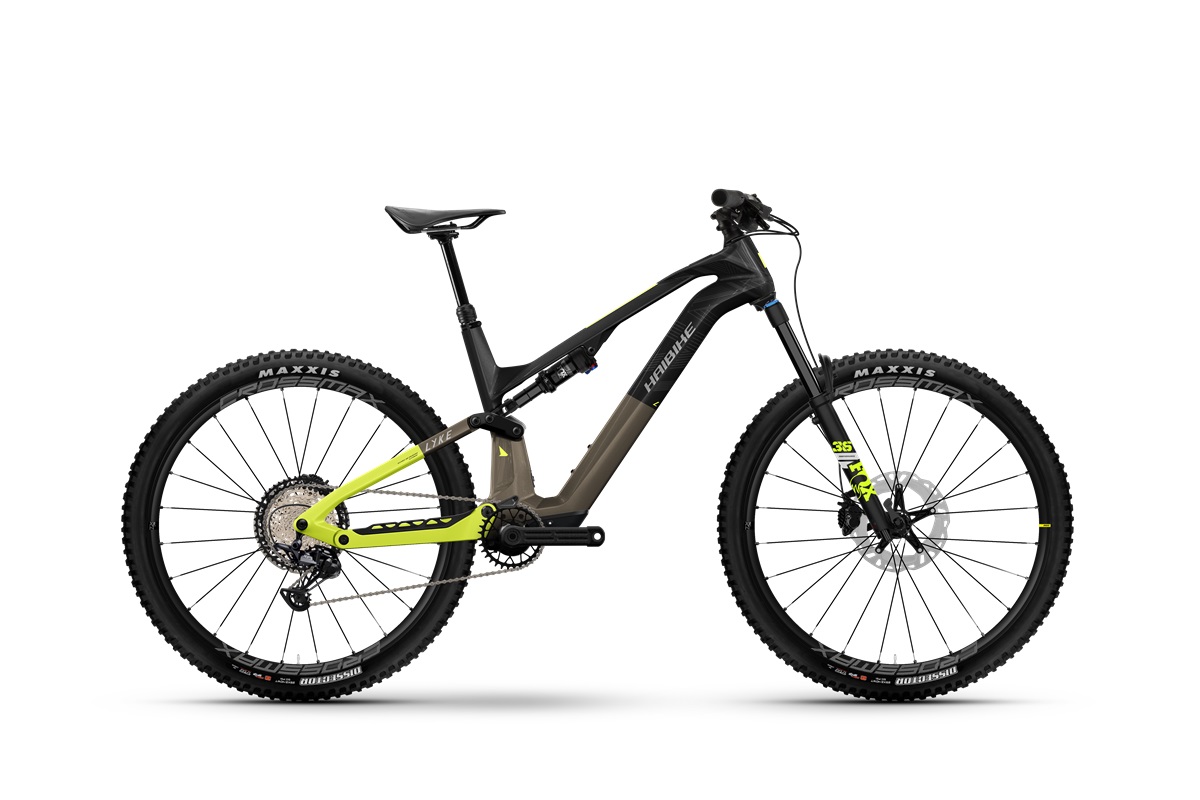

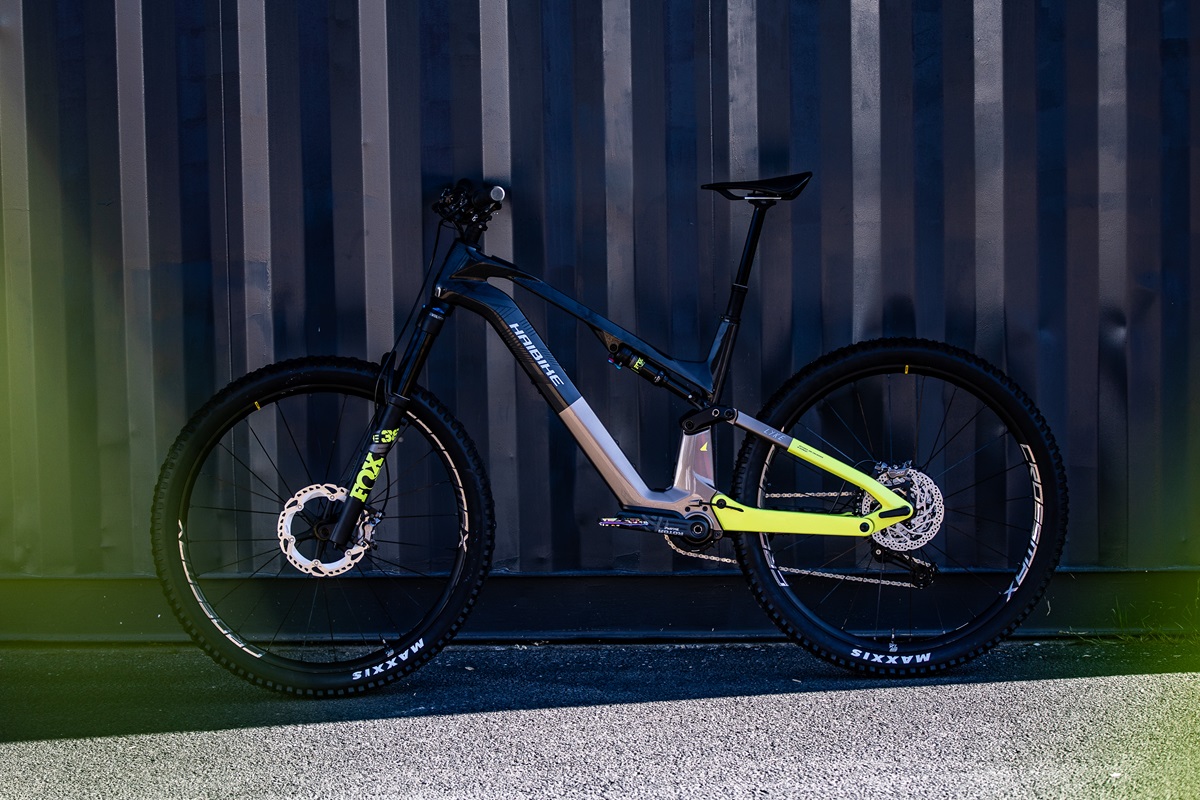

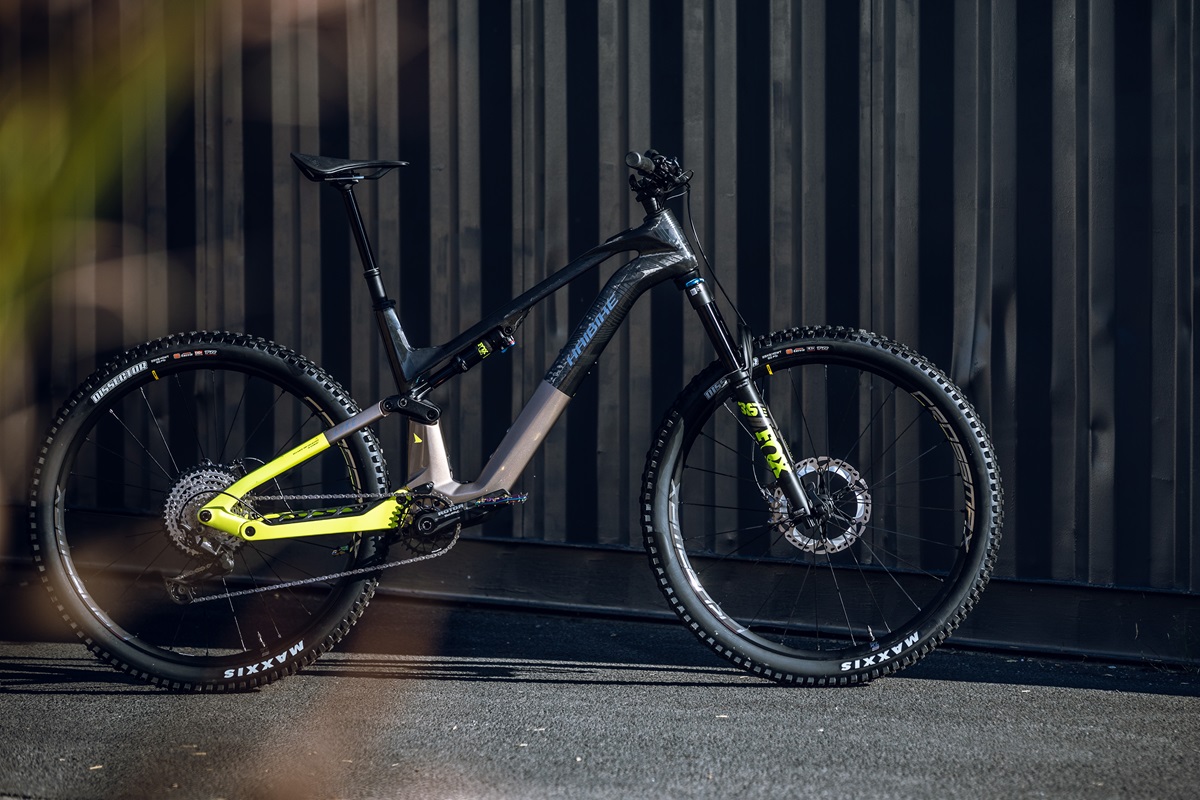

Haibike Lyke CF 11
ABOUT THE BIKE
eBiking has never been so easy: With the Lyke 11, of our brand new Light eMTB series, you will experience riding fun in a completely new dimension. With this ultra-light and agile eFully, sporty riders will find their perfect companion for going fast uphill and downhill. The carbon frame with closed downtube and the new Fazua Ride60 motor compactly placed in the seat tube save unnecessary kilos, whilst achieving a lower and more centralised centre-of-gravity. High-quality XT shifting and braking components from Shimano, 140mm Fox Float suspension elements, robust Mavic E-Crossmax 29" wheels and the new efficient kinematics ensure optimal ePerformance uphill and downhill.
KEY FEATURES
FRAME MATERIAL
Full Carbon
BATTERY
Intube 430Wh
FORK
FOX 36 Float Performance, Travel 140mm
DRIVE UNIT
Fazua Ride60 250W, 60Nm
SPECIFICATIONS
- ENGINEFazua, Ride60, 250W, 60 Nm
- DISPLAYFazua, Straight bar Ring control
- BATTERYFazua, Energy InTube, 430 Wh
- FRAME FAMILYHaibike, Lyke, Carbon
- FORKFOX, 36 Float Performance, Air, travel= 140 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
- DAMPERFOX, Float Performance DPS EVOL, Air, M8x25
- CRANK ARMRotor, E-Kapic, Aluminium
- BRAKE (FRONT)Shimano, Deore XT M8120
- BRAKE (REAR)Shimano, Deore XT M8120
- TUBEPresta valve
- CLAMPING RINGInternal hexagon, 34.9 mm
- REAR DERAILLEURShimano, Deore XT M8100 Shadow Plus
- SHIFT LEVERShimano, Deore XT M8100, Trigger switch
- BOTTOM BRACKETintegrated in the motor
- SPROCKETShimano, SLX M7100, 10 - 51 teeth
- CHAINShimano, SLX M7100
- CHAINRINGRotor, Aluminium, 32 teeth
- CHAIN GUIDENylon directmount
- BRAKE LEVERShimano, Deore XT M8100, Aluminium,
- BRAKE DISC (FRONT)Shimano, RT-MT800LE, 203 mm
- BRAKE DISC (REAR)Shimano, RT-EM810ME, 180 mm
- TYREMaxxis, Dissector MaxxTerra EXO, 29" x 2.4"
- WHEEL SETMavic, E- Crossmax XL S
- HANDLEBARXLC, FlowBy, 780 mm
- GRIPSHaibike, MTB grips
- STEMXLC, FlowBy, A-head, 31.8 mm
- HEADSETAcros, BlockLock, Aluminium
- SADDLESelle Italia, Model X
- SEAT POSTDropper-Post Remote, Aluminium, Telescope, 31.6 mm
- PEDALSFreeridepedal, Aluminium, with Reflector
- PERMITTED TOTAL WEIGHT120.0 kg
- TYRE (REAR)Maxxis, Dissector MaxxTerra EXO+, 29" x 2.4"
GEOMETRY
| FRAME SIZE (I.E. S, M, ...) | S | M | L | XL |
|---|---|---|---|---|
| A | ||||
| B | ||||
| C | ||||
| D | ||||
| E | ||||
| F | ||||
| G | ||||
| H | ||||
| I | ||||
| J | ||||
| K | ||||
| L |
